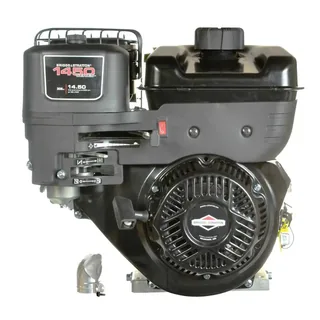

Briggs & Stratton 19N132-0055-F1 Horizontal Engine

Briggs & Stratton 19N132-0055-F1 Horizontal Engine is 306cc and puts out 14.5 gross torque. This single-cylinder OHV engine has a 1″ x 2.765″ crankshaft. Briggs & Stratton 1450 Series engines provide consistent performance and durable features to keep delivering the necessary power for a variety of jobs. Common applications include water pumps, pressure washers, portable generators and more. This model is not for use on leaf blowers/vacs or chipper/shredders; instead use model 19L232-0036-F1. Buyer protection package provides a two-year consumer warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.

Key Specifications

BRAND Briggs & Stratton

MODEL NUMBER 19N132-0055-F1

REPLACES MODELS 161432-0114-01, 161432-0115-01, 161432-0118-01, 161432-0121-01, 161432-0126-99, 161432-0127-01, 161432-0135-01, 190402-2921-01, 192402-1209-E1, 196432-0653-A1, 201312-0139-B1, 201312-0139-E9, 201312-0140-B1, 204412-0114-E1, 204412-0114-E2, 204412-0114-E9, 204412-0117-E1, 204412-0125-E1, 204412-0159-E1, 204412-0159-E9, 205312-0219-B1, 205312-0219-B9, 205312-0301-B1, 205312-0301-B9, 205312-0301-E9, 205332-0123-B1, 205332-0123-B9, 205332-0246-B1, 205332-0279-B1, 205332-0279-E9, 205332-0282-B1, 205332-0536-B1, 205332-0536-E9, 205412-0113-E1, 205412-0113-E9, 205412-0120-E1, 205412-0121-E1, 205412-0121-E9, 205412-0125-E1, 205412-0128-E1, 205412-0129-E1, 205412-0129-E9, 205412-0133-E1, 205412-0133-E9, 205412-0134-E1, 205412-0161-E1, 205412-0161-E9, 205412-0167-E1, 205412-0202-E1, 205412-0202-E9, 205412-0203-E1, 205412-0203-E9, 205412-0209-E1, 205412-0209-E9, 205412-0228-E1, 205412-0230-B1, 205412-0230-B9, 205412-0236-E9, 205412-0278-E1, 205432-0036-B1, 205432-0036-B9, 205432-0036-E1, 205432-0036-E2, 205432-0036-E9, 205432-0114-E1, 205432-0114-E2, 205432-0132-E1, 205432-0136-E1, 205432-0136-E9, 205432-0145-E1, 205432-0145-E9, 205432-0164-E1, 205432-0164-E9, 205432-0197-B1, 205432-0197-B9, 205432-0197-E1, 205432-0197-E9, 205432-0199-E1, 205432-0199-E9, 205432-0200-B1, 205432-0200-B9, 205432-0200-E1, 205432-0200-E9, 205432-0201-B1, 205432-0201-B9, 205432-0201-E1, 205432-0201-E9, 205432-0227-E1, 205432-0279-E1, 205432-0279-E9, 205432-0536-E9, 220431-0142-99, 220432-0111-99, 220432-0154-99, 220432-0157-99, 220432-2035-99, 221431-0140-01, 221431-0142-01, 221431-0146-01, 221431-0156-01, 256422-1015-E1, 256422-1015-E2, 256422-1015-E4, 202332-0536, 205332-0536, 20S232-0036-F1, 20S232-0036

WARRANTY 2 Year Consumer / 1 Year Commercial

SHIPPING WEIGHT 59

DISPLACEMENT 305cc

STARTER TYPE Recoil

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 1″ x 2-29/32″

CRANKSHAFT LENGTH 2-29/32″

CRANKSHAFT END TAPPED SIZE 3/8 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

CYLINDERS 1

CYLINDER BORE TYPE Cast Iron Sleeve

AIR CLEANER TYPE Cartridge with Pre Filter

FUEL TANK Yes

FUEL PUMP No

OIL COOLER No

OIL CAPACITY 28

LOW OIL ALERT No

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Float

CHOKE CONTROL Manual

MAX RPM 3600

CHARGING SYSTEM None

BOLT CIRCLE 3-5/8″, 5, 6-1/2

FLYWHEEL Heavy

NOTES Engine Notes:

PTO HEIGHT 5 – 1/4
