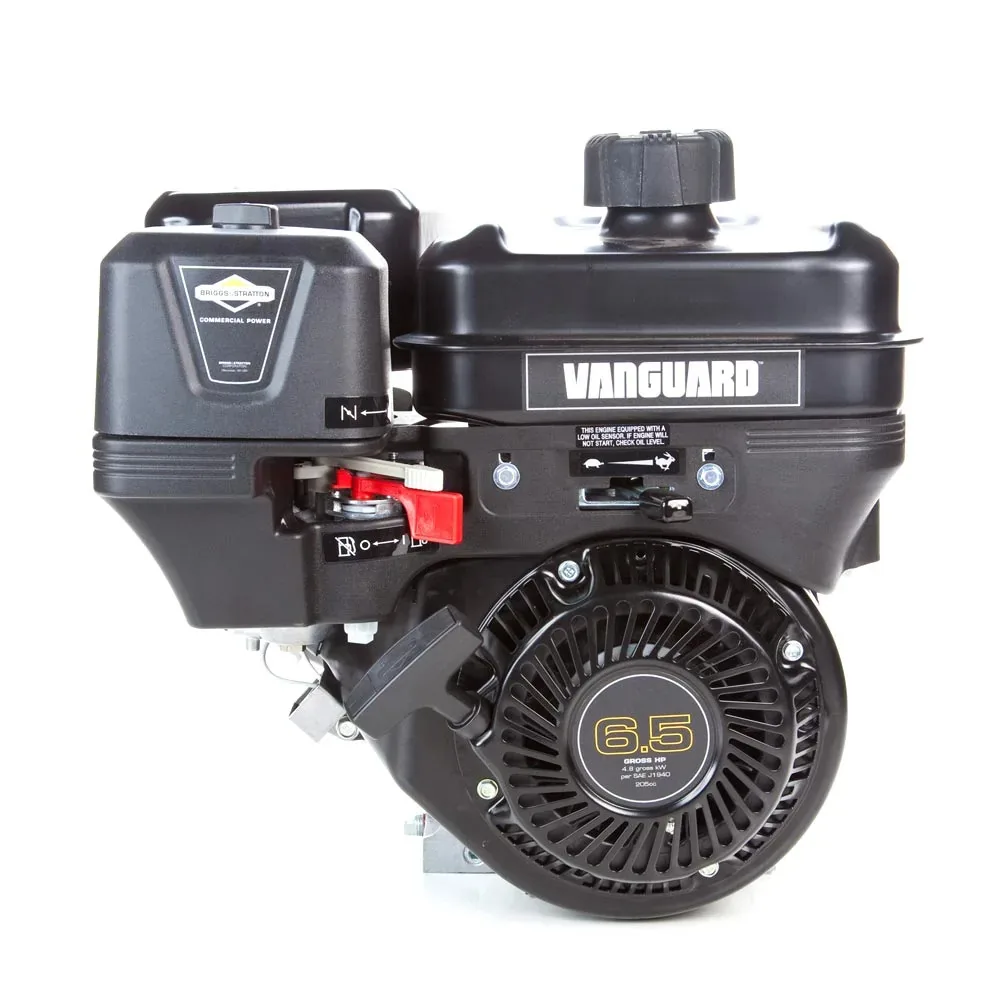

Briggs & Stratton 13L332-0036-F8 Horizontal Vanguard Engine SALE !!

Briggs & Stratton 13L332-0036-F8 Horizontal Vanguard Engine SALE !! is 205cc and puts out 6.5 HP. This OHV single-cylinder Vanguard has a 3/4″ x 2-27/64″ crankshaft. The engine has a recoil starter and includes a muffler. Briggs & Stratton Vanguard engines are designed to operate under challenging conditions making them a top choice among equipment manufacturers. Common applications include tillers, compactor plates, generators, aerators and more. Buyer protection package provides a three-year limited consumer warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.

Key Specifications

BRAND Briggs & Stratton

MODEL NUMBER 13L332-0036-F8

WARRANTY 3 Year Consumer & Commercial

SHIPPING WEIGHT 45

DISPLACEMENT 205cc

STARTER TYPE Recoil

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 3/4″ x 2-7/16″

CRANKSHAFT DIAMETER 3/4″

CRANKSHAFT LENGTH 2-7/16″

CRANKSHAFT END TAPPED SIZE 5/16 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

BEARING TYPE Ball

CYLINDERS 1

CYLINDER BORE TYPE Cast Iron Sleeve

AIR CLEANER TYPE Cartridge with Pre Filter

FUEL TANK Yes

FUEL PUMP No

OIL COOLER No

OIL CAPACITY 20

LOW OIL ALERT Yes

IGNITION SYSTEM Electronic

CARBURETOR TYPE Float

CHOKE CONTROL Manual

MAX RPM 3800

CHARGING SYSTEM None

BOLT CIRCLE 3 -5/8″

FLYWHEEL Heavy

NOTES Engine Notes:

PTO HEIGHT 4 – 11/64
