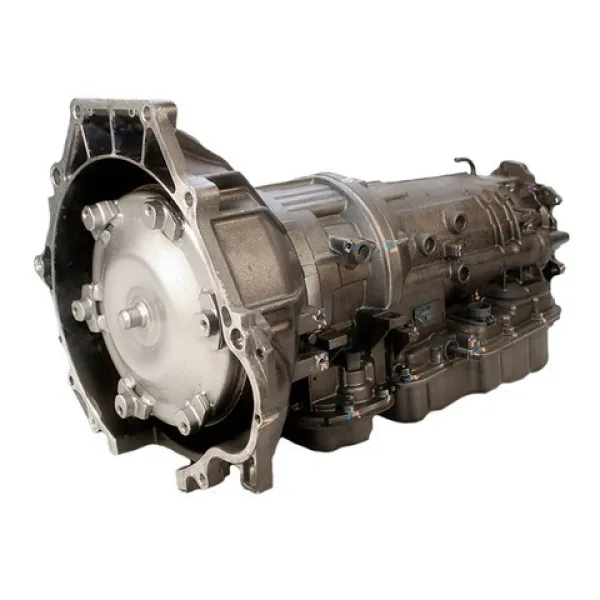

Hot summer backroad cruising and stop-and-go city traffic demand dependable hydraulic transmission line pressure. This remanufactured BMW Z3 Style-B transmission restores factory gear engagement for 1999 to 2000 BMW Z3 models. Installers must flush the external transmission oil cooler and clear transmission adaptation tables before releasing the roadster to the customer.

Shot-peened A380 die-cast aluminum forms the bellhousing and main gear case, inspected with magnetic particle dye after abrasive shot blasting. Hardened planetary carrier pins resist high shear loads from six-cylinder engines. We install updated oversized pressure regulator valves, heavy-duty intermediate brake bands, Kolene steel reaction plates, and BorgWarner friction packs. Renewed front pump stator bushings prevent internal fluid leakage. The dry assembly weighs 145 lbs and ships in a 34 by 22 by 20 inch crate.

Key Features of BMW 4L30E

Automotive shops buy BMW 4L30E transmission gearboxes to stop delayed forward engagement without paying inflated dealership pricing. This commercial remanufactured transmission assembly provides reliable open-road driving for your BMW Z3 transmission replacement project.

- Oversized pressure regulator sleeve eliminates line pressure drops inside the hydraulic pump casing.
- CNC-reamed valve body bores hold twenty-two inches of mercury on calibrated vacuum test benches.
- BorgWarner friction plates resist thermal loads encountered during aggressive spirited roadster driving.
- Balanced remanufactured torque converter stops drivetrain shudder while protecting front oil pump gears.
- Hardened intermediate band delivers positive mechanical grip to stop second gear shift flare.
- Upgraded Viton accumulator seals prevent fluid cross-bleed during rapid throttle transitions.
- Precision stator support bushings maintain consistent hydraulic fluid feed to the converter clutch.

SuperFlow Dynamometer Diagnostic Telemetry Data

Technicians test every remanufactured 4L30E gearbox on an automated SuperFlow dynamometer through cold start and elevated operating temperatures. Gauges register main line pressure at 195 PSI in Drive and 245 PSI in Reverse at 1800 RPM. Pulse-width modulated shift solenoids show actuation response times under twenty-four milliseconds without mechanical valve hang. Critical valve body bores sustain twenty-one inches of mercury vacuum during static bench drawdown tests. Dyno sensors confirm zero converter clutch slip under loaded grade profiles. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Protocols Negative Filter

Turn and push the torque converter until you verify three distinct clicks into the oil pump drive gear. Verify engine block dowel alignment before drawing bellhousing bolts tight to the block. Do not buy this factory unit for high-boost turbo conversions, track drift builds, or nitrous drag racing.

- Flush chassis transmission cooler lines with heated pressurized solvent to clear friction sediment.
- Fill with approved Dexron III fluid until fluid level reaches the full mark at operating temperature.
- Reset transmission shift adaptives using an advanced diagnostic scanner prior to road testing.

Nationwide Warranty Freight Manifest Inclusions

Your transmission purchase brings a nationwide 3-Year/100,000-Mile warranty covering mechanical breakdown and hydraulic valve body defects. The reinforced wooden crate contains a balanced torque converter, technician installation checklist, dynamometer test pass report, cooler flush tracking card, and a pre-paid core return freight bill for prompt return transit.
