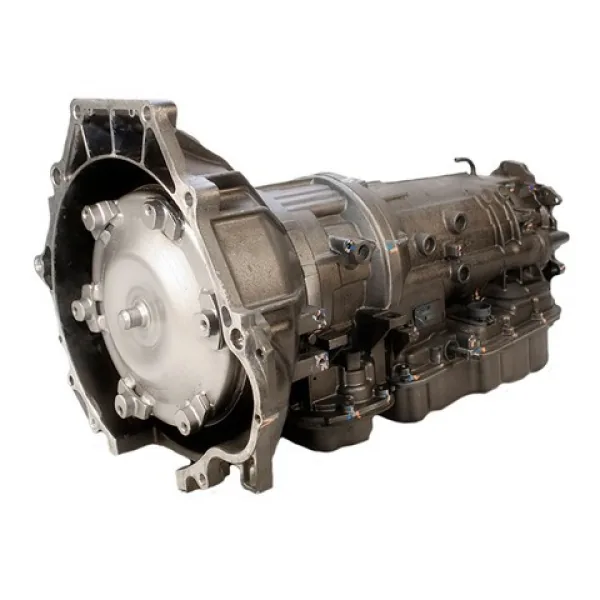

Harsh 1-2 shift shudder and slipping reverse engagement signal catastrophic clutch drum wear inside your roadster. Replace that fatigued unit with this remanufactured BMW Z3 Style-C transmission built for 1997 to 1998 models. Installers must flush the external cooler lines and clear computer adaptation values right after mounting the unit to the engine.

Shot-peened A380 die-cast aluminum forms the dual-section transmission case, inspected with fluorescent dye penetrant for bellhousing stress cracks. Hardened planetary pinions handle engine torque without gear tooth pitting or carrier twist. We install updated pump pressure regulator valves, heavy-duty intermediate bands, Kolene steel plates, and fresh BorgWarner friction modules. Micro-polished stator support bushings restore hydraulic balance. The dry transmission weighs 145 lbs and ships inside a 34 by 22 by 20 inch crate.

Key Features of BMW 4L30E

Technicians buy BMW 4L30E transmission gearboxes to resolve shift flare without paying steep dealership parts pricing. This commercial remanufactured transmission assembly provides positive torque transfer for BMW Z3 automatic transmission replacement projects.

- Oversized pressure regulator sleeve fixes internal line pressure decay inside the front pump housing.
- Hardened intermediate band provides strong mechanical grip to secure crisp second gear engagement.
- Hydro-tested aluminum valve body passages hold twenty-two inches of mercury on vacuum test benches.
- Balanced remanufactured torque converter stops driveline vibration and prevents front pump bushing galling.
- High-energy friction clutch plates resist thermal breakdown under prolonged high-speed highway cruising.
- Updated Viton accumulator piston seals stop fluid cross-leaks during aggressive stop-and-go driving.
- Precision stator support bushings ensure steady hydraulic fluid supply into the converter clutch circuit.

AIDCO Bench Dynamometer Pressure Metrics

Each completed 4L30E unit undergoes automated load testing on an AIDCO transmission dynamometer through cold and hot running cycles. Gauge readings confirm main line pressure reaching 195 PSI in Drive and 245 PSI in Reverse at 1800 RPM. Shift solenoids actuate valve passages within twenty-five milliseconds under live electronic control tests. Valve body hydraulic circuits sustain twenty-one inches of mercury vacuum under static hold. Dynamometer instruments verify zero torque converter clutch slip under load. Operating fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Protocols Negative Filter

Slide the torque converter onto the input splines until you verify three distinct clicks. Check pump hub clearance with a straightedge before tightening bellhousing bolts to the block. Do not buy this factory calibration unit for supercharged builds, drift track cars, or custom engine swaps.

- Flush chassis transmission cooler lines with heated chemical solvent to remove old friction sediment.
- Fill with approved Dexron III fluid while monitoring oil pan temperature using diagnostic software.
- Reset transmission shift adaptives using an advanced scan tool before initial street test driving.

Nationwide Warranty Freight Manifest Inclusions

Your transmission purchase brings a nationwide 3-Year/100,000-Mile warranty covering mechanical defects and hydraulic control pressure failure. The reinforced wooden crate contains a balanced torque converter, field installation checklist, dynamometer test pass report, cooler flush tracking card, and a pre-paid return bill of lading for prompt core recovery.
