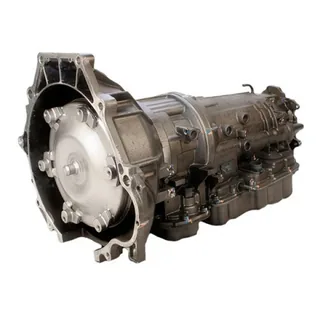

Bolt this remanufactured BMW Z3 4L30E transmission directly to your rear-wheel-drive roadster engine block. This four-speed gearbox restores positive gear selection across all acceleration curves. It fits 1997 to 1998 BMW Z3 models with four-cylinder or six-cylinder powerplants. You must perform a complete chemical cooler line flush before initial fluid fill to preserve internal pump integrity.

Shot-peened A380 aluminum forms both the main case and front adapter casting. Non-destructive magnaflux testing confirms zero fatigue cracks along bellhousing bolt bosses. Inside, precision steel planetary pinions mesh against hardened sun gears with set mechanical lash. We install bushed stator supports, Kolene treated steel plates, and fresh BorgWarner friction modules throughout. The dry transmission unit weighs 145 lbs and ships inside a 34 by 22 by 20 inch crate.

Key Features of BMW 4L30E

Automotive mechanics buy BMW 4L30E transmission units to eliminate delayed forward engagement without paying high dealership pricing. This commercial remanufactured transmission assembly restores firm shifts for your BMW Z3 automatic transmission replacement project.

- Oversized pressure regulator valves eliminate internal line pressure drop inside the main oil pump casting.
- Hardened intermediate brake bands grip the reaction drum to secure crisp second gear engagement.
- Hydro-tested aluminum valve body passages hold twenty-two inches of mercury during vacuum leak tests.
- Balanced remanufactured torque converter eliminates vibration and prevents front pump bushing galling.
- BorgWarner friction clutch plates pack into the forward drum for dependable torque multiplication.
- Updated Viton accumulator piston seals resist thermal breakdown during hot summer stop-and-go driving.
- Precision stator support bushings guarantee stable hydraulic fluid feed into the converter clutch circuit.

SuperFlow Bench Dynamometer Telemetry Data

Every rebuilt 4L30E unit undergoes comprehensive testing on an automated SuperFlow transmission dynamometer under full operating heat. Technicians log main line pressure at 195 PSI in Drive and 245 PSI in Reverse at 1800 RPM. Electronic pulse-width solenoids demonstrate rapid actuation times below thirty milliseconds without mechanical bind. Critical valve body bores sustain twenty-one inches of mercury vacuum under static hold. The dyno run confirms zero converter clutch slip under simulated highway hill climbs. Fluid temperatures hold at 175 degrees Fahrenheit throughout testing.

Field Installation Directives Application Limits

Seat the torque converter inward with three distinct clicks until the hub clears the bellhousing plane by half an inch. Dowel pins must enter the block straight without draw bolt force. Do not buy this factory unit for turbocharged track builds, drift cars, or nitrous setups.

- Flush chassis transmission oil cooler passages with heated solvent to clear suspended bronze dust.
- Fill the sump pan with approved Dexron fluid while monitoring pan temperature with diagnostics.
- Reset transmission adaptation registers using a BMW scan tool prior to initial highway road testing.

Nationwide Warranty Freight Manifest Inclusions

You receive a nationwide 3-Year/100,000-Mile parts warranty covering internal hydraulic and mechanical component failures. The reinforced wooden crate contains a balanced torque converter, detailed installation instructions, dynamic test pass printout, cooler flush verification card, and a pre-printed freight bill of lading for prompt core return pickup.
