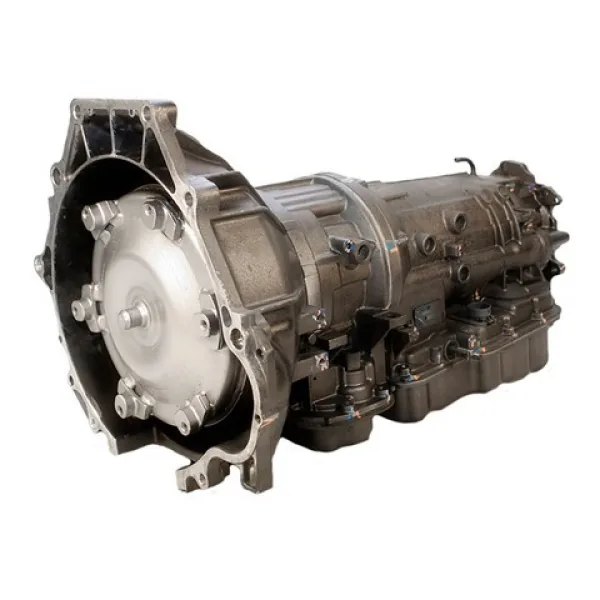

BMW Z3 1996-1997 Automatic Transmission 4-Speed 4L30E Remanufactured

Virgin shot-peened A380 aluminum forms the rigid foundation of this rebuilt four-speed roadster transmission. This remanufactured BMW Z3 4L30E transmission restores positive gear engagement for 1996 to 1997 BMW Z3 models carrying tag 10150T. You must flush cooler lines with heated solvent and reset computer shift adaptives before road testing to preserve internal clutches.

Clean shot-peened A380 die-cast aluminum encloses the gear train, inspected for hairline bellhousing fissures using fluorescent dye testing. High-strength planetary gear pinions transfer four-cylinder and six-cylinder engine power without tooth spalling. We install oversized steel pressure regulator valves, heavy-duty intermediate bands, Kolene steel reaction plates, and BorgWarner friction packs. Renewed front pump stator bushings prevent circuit cross-leaks. The dry gearbox weighs 145 lbs and ships inside a 34 by 22 by 20 inch crate.

Key Features of BMW 4L30E

Independent repair shops buy BMW 4L30E transmission units to restore positive gear engagement without facing high dealership parts pricing. This commercial remanufactured transmission assembly provides dependable power transfer for your BMW Z3 transmission replacement project.

- Oversized pressure regulator valve stops hydraulic pressure loss inside the main pump casting.
- Hardened intermediate band provides positive mechanical grip to eliminate second gear shift flare.
- Hydro-tested aluminum valve body passages hold twenty-two inches of mercury during vacuum decay checks.
- Balanced remanufactured torque converter eliminates driveline vibration and protects oil pump gears.
- BorgWarner friction clutch plates maintain solid torque transfer under continuous highway driving cycles.
- Updated Viton accumulator piston seals prevent fluid cross-leakage during aggressive city driving.
- Precision stator support bushings ensure uninterrupted hydraulic fluid feed to the converter clutch.

SuperFlow Dynamometer Diagnostic Telemetry Data

Technicians test every remanufactured 4L30E gearbox on an automated SuperFlow dynamometer through cold start and high temperature cycles. Gauges register main line pressure at 195 PSI in Drive and 245 PSI in Reverse at 1800 RPM. Shift solenoids actuate valve passages within twenty-four milliseconds under computer diagnostics. Valve body hydraulic circuits hold twenty-one inches of mercury vacuum during static bench drawdown tests. Dyno sensors confirm zero converter clutch slip under loaded grade profiles. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Guidelines Negative Filter

Turn and push the torque converter until you verify three distinct clicks into the oil pump drive gear teeth. Avoid drawing the bellhousing against the engine block with bolts before dowels seat. Do not buy this factory spec transmission for turbocharged track builds, drift cars, or nitrous setups.

- Flush chassis radiator heat exchangers with dedicated chemical solvent to remove metal dust.
- Fill with approved Dexron III fluid while monitoring oil sump temperature with diagnostic tools.
- Reset transmission shift adaptation registers using an advanced scan tool before highway test driving.

Nationwide Warranty Freight Manifest Details

This remanufactured assembly carries a nationwide 3-Year/100,000-Mile warranty covering mechanical damage and internal hydraulic control failure. The reinforced wooden crate contains a balanced torque converter, technician installation checklist, dynamometer test pass report, cooler flush tracking sheet, and a pre-paid core return freight bill for prompt return transit.
