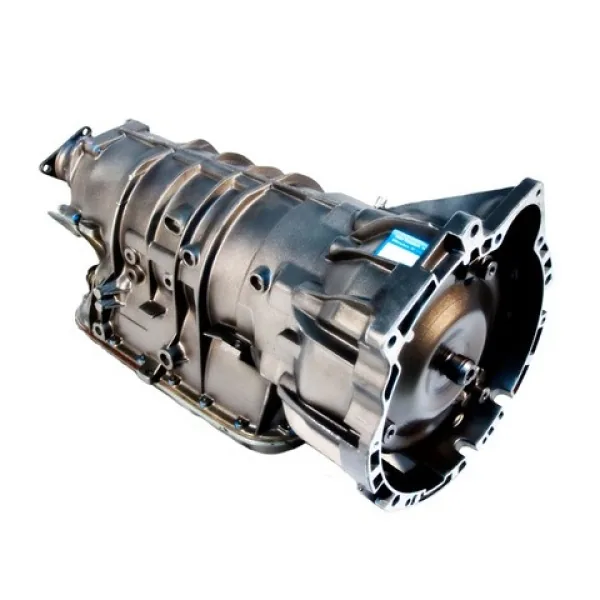

Steep mountain climbs and heavy all-wheel-drive winter commuting demand consistent hydraulic transmission line pressure. This remanufactured BMW X5 5L40E transmission restores positive gear engagement for 2001 to 2002 BMW X5 3.0i sport utility vehicles. Installers must flush the external transmission oil cooler and clear transmission adaptation tables before releasing the vehicle to the customer.

Reinforced A380 die-cast aluminum forms the heavy-duty transmission case, inspected with magnetic particle dye to identify stress fractures around transfer case bolt mounts. High-strength planetary gear pinions transfer high M54 torque into the all-wheel-drive system without gear teeth spalling. We install upgraded Sonnax pressure regulator sleeves, BorgWarner friction clutch modules, and precision stator support bushings. The dry unit weighs 168 lbs and ships secured inside a 36 by 24 by 22 inch crate.

Key Features of BMW 5L40E

Automotive shops buy BMW 5L40E transmission gearboxes to stop severe torque converter clutch slip without paying inflated dealership pricing. This commercial remanufactured transmission assembly provides reliable all-weather capability for BMW X5 transmission replacement projects.

- Oversized pressure regulator sleeve eliminates line pressure drops inside the hydraulic valve body.
- CNC-reamed valve body bores hold twenty-two inches of mercury on calibrated vacuum test benches.
- BorgWarner friction plates resist high thermal loads encountered during heavy sport utility vehicle towing.
- Balanced remanufactured torque converter stops drivetrain shudder while protecting front oil pump gears.
- Hardened sun gear drive shells prevent internal spline stripping under sudden throttle kickdown conditions.
- Upgraded accumulator springs cushion clutch engagement to prevent harsh shift clunks into drive.
- New internal wiring harness stops solenoid communication dropouts caused by hot fluid exposure.

AIDCO Bench Dynamometer Pressure Metrics

Each completed 5L40E all-wheel-drive gearbox undergoes rigorous testing on an automated AIDCO dynamometer under loaded operating heat. Gauge readings verify main line pressures reaching 190 PSI in Drive and 260 PSI in Reverse under load. Pulse-width shift solenoids show actuation times within twenty-four milliseconds with zero valve binding. Valve body hydraulic circuits sustain twenty-one inches of mercury vacuum during static bench drawdown tests. Dyno computer sensors log zero lockup clutch slip under simulated grade resistance. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Realities Negative Filter

Slide the torque converter onto the input splines until you verify three distinct clicks. Measure pump hub clearance against the bellhousing face before drawing bellhousing bolts tight to the block. Do not buy this factory spec transmission for high-boost turbo conversions, nitrous setups, or off-road rock crawlers.

- Flush chassis transmission cooler lines with heated pressurized chemical solvent to clear debris.
- Fill with Texaco ETL-7045E fluid until fluid runs from check port at forty degrees Celsius.
- Reset transmission adaptation registers using an advanced scan tool before initial road testing.

Nationwide Warranty Freight Manifest Inclusions

This remanufactured unit includes a nationwide 3-Year/100,000-Mile warranty covering internal mechanical component failures and hydraulic valve body pressure loss. The wooden crate contains a balanced torque converter, field installation checklist, complete dynamometer test pass report, cooler flush verification card, and a pre-paid return bill of lading for prompt core recovery.
