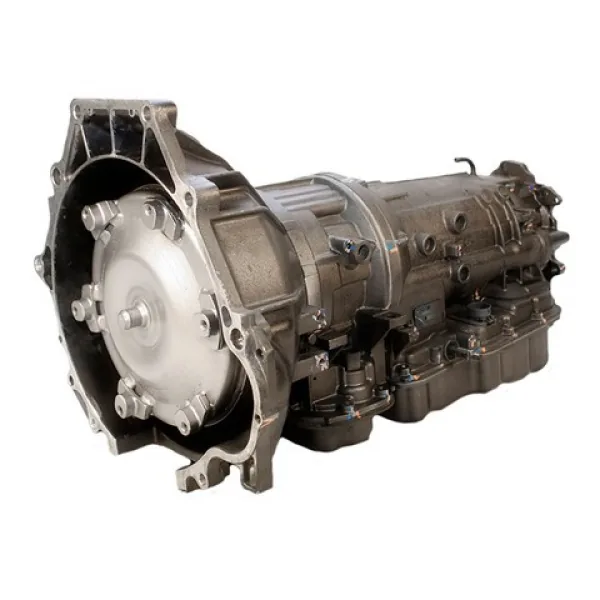

BMW 528i 1999 Automatic Transmission 4-Speed 4L30E Remanufactured

Slot this remanufactured 1999 BMW 528i 4L30E transmission straight into your E39 sedan for immediate drivetrain restoration. Built to match 1999 production tag 10149T, this four-speed automatic delivers crisp gear transitions across all speeds. You must clear transmission computer adaptation values and flush cooler circuits prior to putting this unit into daily road service.

Shot-peened A380 die-cast aluminum makes up the external transmission case, inspected for stress cracks with non-destructive fluorescent dye testing. High-strength planetary pinions handle M52TU engine torque without tooth pitting. We install oversized steel pressure regulator valves, heavy-duty intermediate bands, Kolene steel reaction plates, and high-energy BorgWarner friction packs. Renewed front pump stator bushings restore continuous fluid volume. The dry transmission weighs 145 lbs and ships inside a 34 by 22 by 20 inch crate.

Key Features of BMW 4L30E

Professional repair facilities buy BMW 4L30E transmission assemblies to correct delayed drive engagement without facing steep dealership part pricing. This commercial remanufactured transmission assembly provides dependable power transfer for your 1999 BMW 528i transmission replacement project.

- Oversized pressure regulator valve sleeve stops hydraulic pressure loss inside the main pump casting.
- Hardened intermediate band provides positive mechanical grip to eliminate second gear shift flare.
- Vacuum testing confirms twenty-two inches of mercury seal across all reamed valve body passages.
- Balanced remanufactured torque converter eliminates driveline vibration and prevents front pump bushing wear.
- BorgWarner friction clutch plates maintain solid torque transfer under continuous highway driving cycles.
- Updated Viton accumulator piston seals prevent fluid cross-leakage during aggressive city driving.
- Precision stator support bushings ensure uninterrupted hydraulic fluid feed to the converter clutch.

AIDCO Bench Dynamometer Pressure Metrics

Certified technicians test each remanufactured 4L30E gearbox on an automated AIDCO test bench through cold and hot running cycles. Gauges measure main line pressure reaching 195 PSI in Drive and 245 PSI in Reverse at 1800 RPM. Electronic shift solenoids actuate valve passages within twenty-four milliseconds under computer diagnostics. Valve body hydraulic passages hold twenty-one inches of mercury vacuum during static bench drawdown tests. Dyno sensors confirm zero converter clutch slip under loaded grade profiles. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Guidelines Negative Filter

Turn and push the torque converter until you verify three distinct clicks into the pump drive gears. Avoid drawing the bellhousing against the engine block with bolts before dowels seat. Do not buy this factory calibration gearbox for turbo track racers, drift builds, or nitrous swaps.

- Flush chassis radiator heat exchangers with dedicated chemical solvent to remove suspended metal dust.
- Fill with approved Dexron III fluid while monitoring oil sump temperature with diagnostic tools.
- Reset transmission shift adaptation registers using an advanced scan tool before initial highway driving.

Nationwide Warranty Freight Manifest Details

Your purchase includes a nationwide 3-Year/100,000-Mile warranty covering mechanical breakdown and internal hydraulic control failure. The heavy wood crate holds a balanced torque converter, technician installation checklist, dynamometer test pass certificate, cooler flush verification card, and a pre-paid core return freight bill for prompt return transit.
