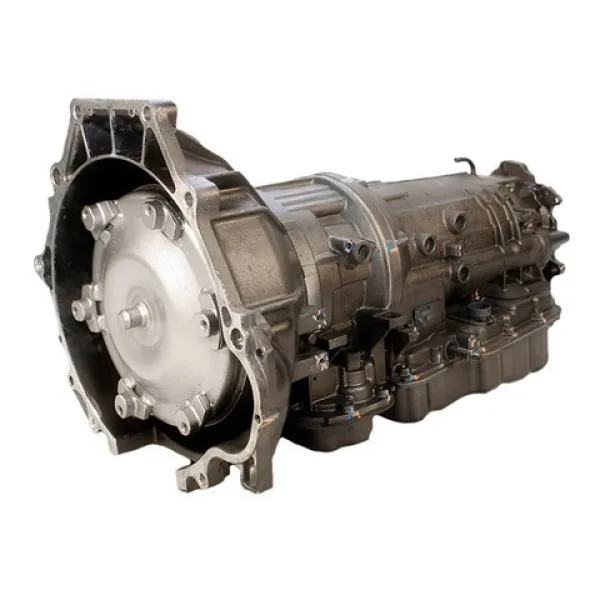

BMW 528i 1998 Automatic Transmission 4-Speed 4L30E Style-C Remanufactured

A 195 PSI main line pressure curve guarantees firm clutch pack lockup under full acceleration. This remanufactured 1998 BMW 528i 4L30E transmission carries Style-C production tag 10148T for exact E39 chassis integration. You must complete a high-temperature cooler flush and perform a computer shift adaptation reset before road testing to safeguard internal clutches.

Shot-peened A380 die-cast aluminum forms both the main housing and front adapter section, verified crack-free through magnetic particle inspections. Steel planet pinions mesh with reaction sun gears to manage M52 engine torque without excessive gear lash. We install oversized steel pressure regulator valves, heavy-duty intermediate bands, Kolene steel plates, and high-energy BorgWarner frictions. Renewed stator bushings restore internal fluid balance. The dry transmission weighs 145 lbs and ships inside a 34 by 22 by 20 inch crate.

Key Features of BMW 4L30E

Independent repair shops buy BMW 4L30E transmission units to restore positive forward engagement without paying high dealership parts pricing. This commercial remanufactured transmission assembly provides durable gear selection for BMW 528i transmission replacement projects.

- Oversized pressure regulator valve eliminates line pressure loss inside the main oil pump casting.
- Hardened intermediate band provides positive mechanical grip to stop second gear shift flare.
- Hydro-tested valve body circuits hold twenty-two inches of mercury vacuum during decay leak checks.
- Balanced remanufactured torque converter eliminates driveline vibration and prevents front pump bushing wear.
- BorgWarner friction clutch plates ensure solid torque transfer under continuous highway cruising conditions.
- Updated Viton accumulator seals prevent fluid cross-bleed during aggressive city stop-and-go driving.
- Precision stator support bushings maintain consistent hydraulic fluid feed to the converter clutch.

SuperFlow Dynamometer Diagnostic Telemetry Data

Technicians test each remanufactured 4L30E gearbox on an automated SuperFlow dynamometer through cold start and elevated operating temperatures. Gauges register main line pressure at 195 PSI in Drive and 245 PSI in Reverse at 1800 RPM. Pulse-width shift solenoids show actuation times under twenty-six milliseconds without mechanical bind. Re-machined valve body passages hold twenty-one inches of mercury vacuum under static bench tests. Dynamometer instrumentation logs zero torque converter clutch slip under loaded grade profiles. Fluid temperatures hold steady at 175 degrees Fahrenheit.

Field Installation Directives Application Limits

Push the torque converter inward while rotating the hub until you verify three distinct clicks. Make sure engine alignment dowels enter the bellhousing straight without draw bolt force. Do not buy this factory replacement unit for turbocharged track racers, drift cars, or nitrous builds.

- Flush chassis transmission oil cooler passages with heated solvent to remove trapped friction particles.
- Fill with approved Dexron III fluid while monitoring fluid sump temperature using diagnostic tools.
- Reset transmission adaptation registers using an advanced scan tool before highway test driving.

Standard Warranty Delivery Crate Manifest

This remanufactured transmission includes a nationwide 3-Year/100,000-Mile warranty covering mechanical breakdown and hydraulic control failure. The reinforced wooden crate contains a balanced torque converter, technician installation checklist, dynamometer test pass report, cooler flush tracking card, and a pre-paid core return freight bill for prompt return transit.
