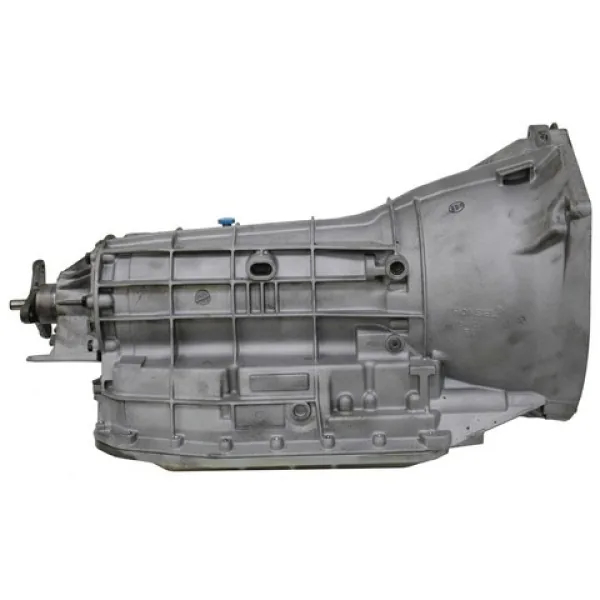

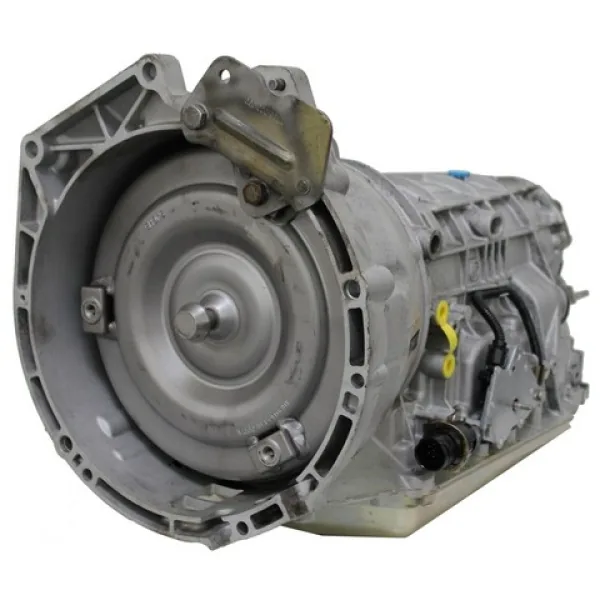

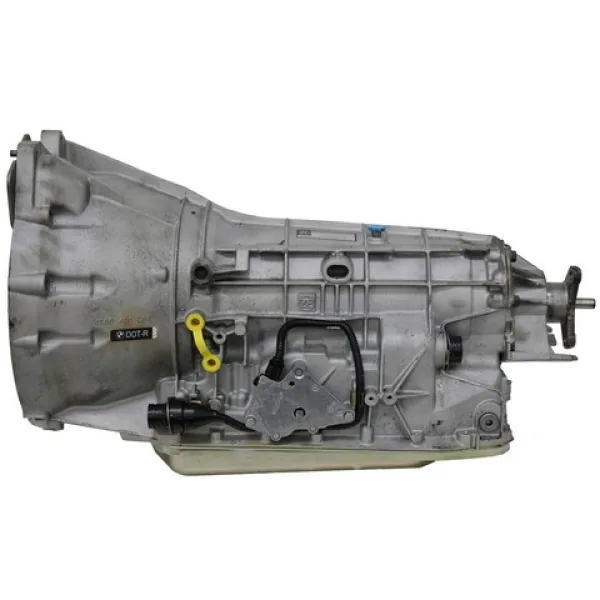

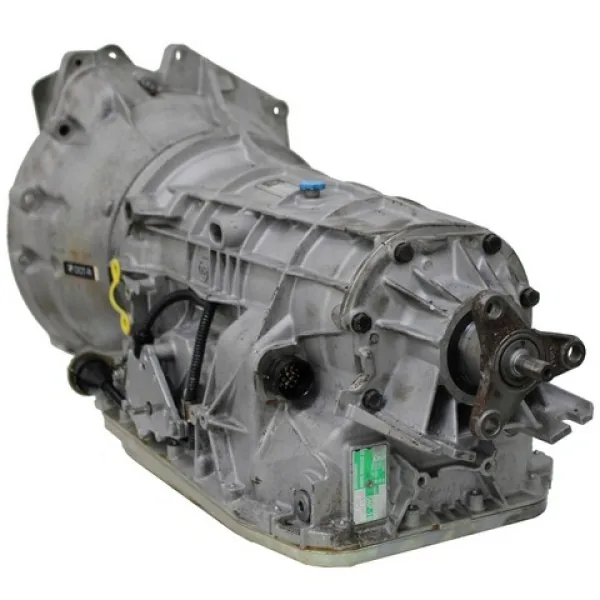

BMW 5 Series 7 Series Automatic Transmission 5-Speed 5HP-30 Tag 10681T Remanufactured

Spool-valve line pressure modulation and heavy-duty planetary gear reduction deliver positive torque transfer under load. This ZF 5HP-30 transmission tag 10681T provides direct mechanical replacement for select BMW 5 Series and 7 Series chassis. You must flush cooler lines with heated solvent and reset adaptation values before completing your initial road evaluation.

Shot-peened A380 die-cast aluminum forms the rigid outer case, inspected through non-destructive dye penetrant for bellhousing stress fractures. Massive forged steel planetary carriers handle big-bore Bavarian engine torque without gear deflection. We install reinforced clutch drums with thickened snap-ring walls, Kolene steel plates, and high-energy Raybestos friction packs. Replaced pump stator bushings maintain constant line pressure. The dry transmission weighs 245 lbs and ships inside a 40 by 28 by 26 inch crate.

Key Features of ZF 5HP30

Technicians buy ZF 5HP30 transmission units to eliminate catastrophic internal drum fracture without paying extreme dealer pricing. This commercial remanufactured transmission assembly provides refined gear changes and dependable torque delivery for your BMW 7 Series transmission replacement project.

- Reinforced 5HP-30 tag 10681T clutch drum update prevents snap-ring groove wall blowout under full acceleration.
- Oversized pressure regulator valve sleeves stop hydraulic pressure spikes that destroy internal clutch cylinders.
- Re-machined valve body passages hold twenty-two inches of mercury during calibrated vacuum tests.
- Dynamically balanced remanufactured torque converter stops driveline vibration and protects front pump bushings.
- High-energy friction plates resist extreme thermal glaze during prolonged high-speed highway driving.
- Precision stator support bushings ensure constant fluid feed to the torque converter lockup circuit.
- Updated accumulator spring packs soften forward clutch application to eliminate abrupt gear engagement clunks.

SuperFlow Dynamometer Diagnostic Telemetry Data

Technicians subject every remanufactured 5HP30 gearbox to hot and cold testing cycles on a SuperFlow transmission dyno. Pressure gauges verify main hydraulic line pressures holding 188 PSI in Drive and 255 PSI in Reverse at 1600 RPM. Electronic shift solenoids switch circuits within twenty-two milliseconds without spool valve hang. Valve body circuits hold twenty inches of mercury vacuum on precision bench gauges. The test program validates zero torque converter clutch slip at cruising speed. Thermal imaging cameras confirm leak-free front pump and rear output seals under load.

Field Installation Directives Negative Filter

Spin the torque converter inward through three positive gear drops until the converter clears the front bellhousing face. Check engine block dowels for corrosion before bolting the bellhousing flat. Do not buy this factory calibrated unit for supercharged builds, manual swaps, or track race chassis.

- Flush cooler lines with hot chemical solvent to clear burned friction clutch sediment.
- Fill with Shell LA2634 fluid through the fill port at forty degrees Celsius.
- Clear transmission adaptation registers using diagnostic software before taking the car on highways.

Nationwide Warranty Freight Crate Contents

Your purchase brings a nationwide 3-Year/100,000-Mile warranty protecting against internal mechanical damage and hydraulic pressure control faults. The sturdy wooden freight crate houses a balanced torque converter, technician installation guide, dynamometer inspection pass slip, cooler flush checklist, and a pre-printed core return bill of lading for simple return transit.
