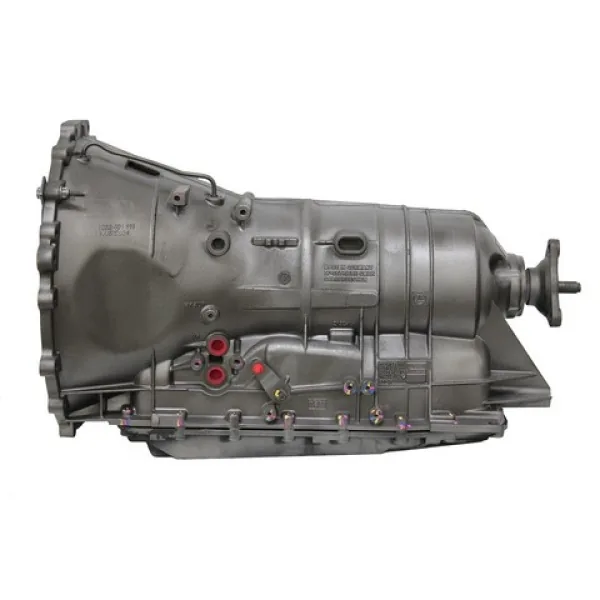

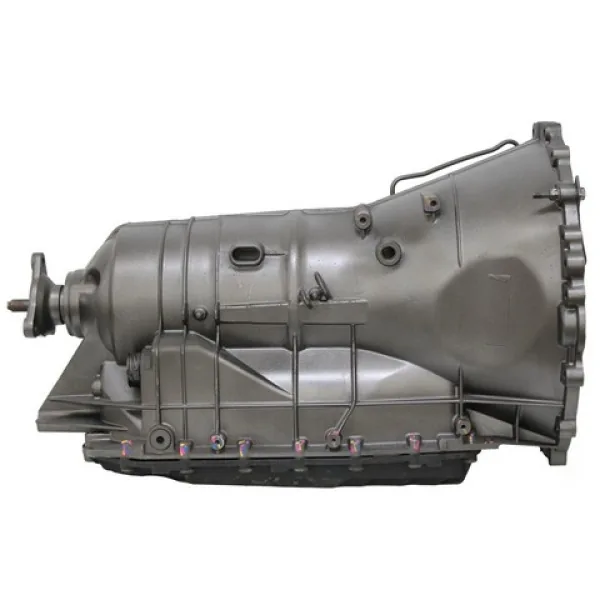

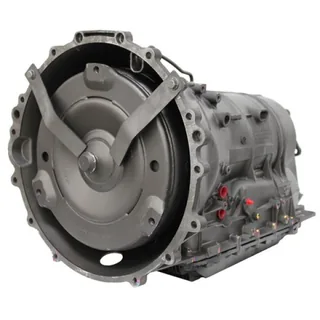

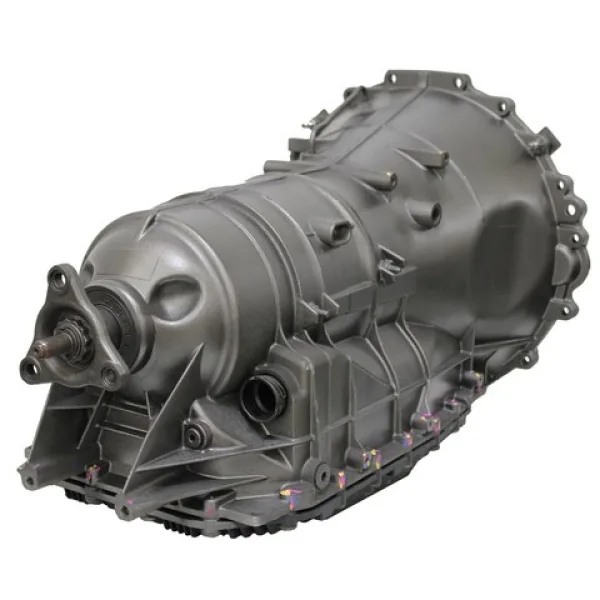

BMW 3 Series 5 Series Automatic Transmission 6-Speed 6HP26 Tag 10878T Remanufactured

Prevent E-clutch slip and 4-5 shift flare using the BMW 3 Series 5 Series automatic transmission 6-speed 6HP26 Tag 10878T remanufactured gearbox on high-torque V8 and diesel sedans. Worn bronze stator bushings allow hydraulic pressure to escape from the E-clutch circuit, resulting in RPM flares during highway upshifts and transmission fault codes. This remanufactured 6-speed ZF transmission features precision-machined E-clutch bushings, a fully overhauled Mechatronic control unit, new rubber bridge seals, and an updated torque converter with fresh captive lockup linings.

Technicians disassemble the Mechatronic valve body, installing upgraded separator plate gaskets and testing all seven pressure control solenoids on heated fluid benches. The heavy-duty planetary gear carrier is inspected, bushed, and re-shimmed to handle up to 600 Nm of engine torque without gear clatter. Computerized load dyno testing verifies that shift adaptation pressures and torque converter lockup curves match the factory computer programming for Tag 10878T.

Technical Specifications of BMW 6HP26 Tag 10878T

- Tag 10878T Software Calibration: Internal gear ratios and Mechatronic solenoid maps match specific BMW engine management systems.
- Upgraded Bronze E-Clutch Bushings: Restores hydraulic seal integrity to eliminate fourth, fifth, and sixth gear shift flares.
- Overhauled ZF Mechatronic Valve Body: Rebuilt with new pressure control solenoids, separator plates, and bore sleeves.
- New Rubber Mechatronic Bridge Seal: Replaces failure-prone rubber sealing blocks between the valve body and main transmission casing.
- Rebuilt Heavy-Duty Torque Converter: Features new captive lockup friction linings to eliminate highway lockup shudder.
- Heavy-Duty Planetary Gearsets: Hardened steel planetary carriers withstand up to 600 Nm of V8 engine torque without fatigue.
- Multi-Channel Dynamic Load Dyno Testing: Checks stall speed, line pressure rise, and gear ratio transitions across all six forward gears.

Mechatronic Calibration & Hydraulic Pressure Delivery

Rebuilt to original ZF 6-speed engineering tolerances, this transmission restores factory shift speed and eliminates hydraulic cross-bleeds.

- Hardened valve body bore sleeves stop line pressure drops, eliminating harsh slamming shifts during low-speed braking stops.
- Updated Mechatronic connector sleeves prevent transmission fluid from wicking into external electrical harness connectors.
- Precision planetary gear carrier shimming eliminates driveline backlash and gear whine during high-speed highway cruising.

Vehicle Compatibility & Fluid Fill Protocol

Built for BMW 3 Series and 5 Series models specifying tag code 10878T on the casing data plate, this unit aligns with factory driveshafts and crossmember mounts.

Commercial Coverage & Maintenance Upkeep

- BMW repair specialists receive 3-Year or 100,000-mile limited parts warranty protection against internal mechanical and Mechatronic defects.
- Warranty coverage requires documented transmission cooler line flushing and correct fluid fill procedures with approved synthetic fluid.

Fill the transmission using proper bottom-fill adapter tools with approved ZF LifeGuard 6 synthetic fluid, checking level between 30 and 50 degrees Celsius. Perform full Mechatronic adaptation drive cycles using diagnostic software before returning vehicle to customer. Order the BMW 3 Series 5 Series automatic transmission 6-speed 6HP26 Tag 10878T remanufactured gearbox from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
