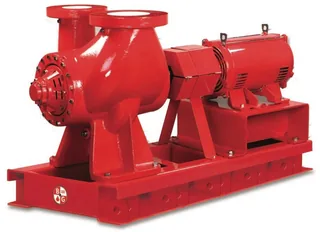

Bell & Gossett VSX-VSCS Vertical Split Case Pump Model 6x8x10-1/2B

Constructed with a high-strength stainless-steel shaft, the Bell & Gossett VSX-VSCS 6x8x10.5B is a side-suction vertical split-case pump with 8-inch suction and 6-inch discharge nozzles. Its double-suction impeller is documented to reduce axial thrust. Main HVAC plants and municipal water systems are the listed selection contexts for this VSCS configuration.

The VSCS arrangement places suction and discharge connections on opposite sides, which changes piping routing and equipment-layout requirements. Double-suction construction does not establish flow or head without the applicable curve. Confirm hydraulic duty, nozzle orientation, pressure class, fluid conditions, foundation requirements, and maintenance access using approved project documents before final selection of this vertical split-case pump.

Key Specifications of the Bell & Gossett VSX-VSCS 6x8x10.5B Split Case Pump

- The 8-inch suction and 6-inch discharge connections define the listed nozzle sizes for project piping review.
- VSCS construction places suction and discharge connections on opposite sides, affecting piping routing and equipment layout.
- A double-suction impeller is specified to reduce axial thrust within the documented hydraulic assembly arrangement.
- High-strength stainless-steel shaft material identifies the listed standard shaft construction for this VSCS pump configuration.
- Main HVAC plants and municipal water systems are the stated application contexts for evaluating this split-case pump.

Hydraulic Performance and Application

The Bell & Gossett VSX-VSCS pump is listed for main HVAC plants and municipal water systems. Its 8-inch suction, 6-inch discharge, opposite-side nozzle arrangement, and double-suction impeller define configuration details rather than a guaranteed operating point. Use the approved VSX curve to determine required flow and head. Verify system pressure, fluid characteristics, NPSH requirements, and piping losses before specification.

Installation and System Requirements

Confirm that the 8-inch suction and 6-inch discharge nozzles match planned piping before installation. The VSCS layout places its connections on opposite sides, so routing and support should follow the approved equipment drawing. Verify foundation, alignment, pressure, fluid, and hydraulic-duty requirements through official documentation. Reserve sufficient access for inspection and service before surrounding mechanical equipment is installed.

Service and Maintenance Considerations

The vertical split-case configuration requires maintenance access consistent with the approved pump layout, nozzle orientation, and connected piping. Its stainless-steel shaft and double-suction impeller are rotating components that should be inspected according to official VSX documentation. Follow lockout and alignment procedures before service. Use manufacturer-approved replacement parts to avoid incorrect fitment, malfunction, or warranty-related issues.

Why Choose the Bell & Gossett VSX-VSCS 6x8x10.5B

This VSCS configuration combines 8-inch suction and 6-inch discharge nozzles with opposite-side connection placement and a double-suction impeller. Its stainless-steel shaft provides a further construction reference. Buyers planning main HVAC or municipal-water installations can compare nozzle orientation, piping routing, foundation needs, hydraulic duty, and required service access with the approved project pump schedule.

Warranty and Support

Bell & Gossett commercial pumps carry a 1-Year Limited Warranty against defects in materials and workmanship. Coverage begins at installation and ends no later than eighteen months from shipment, whichever occurs first. Seals, gaskets, elastomers, coatings, and other wear parts are excluded unless sales documentation states otherwise. Mulmotor provides product-information support before purchase and assistance with order-related questions.

Before Ordering the Bell & Gossett VSX-VSCS 6x8x10.5B Split Case Pump

Before ordering, verify that your HVAC plant or municipal-water project requires 8-inch suction and 6-inch discharge nozzles with a VSCS opposite-side layout. You should confirm required flow, head, NPSH, pressure class, fluid requirements, foundation details, piping routing, and service access through approved VSX curves and drawings. Review alignment requirements before final equipment selection.
