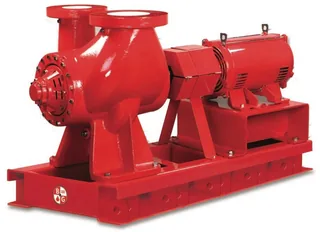

Bell & Gossett VSX-VSC Vertical Split Case Pump Model 4x6x10-1/2A

Maintain a documented hydraulic layout with the Bell & Gossett VSX-VSC 4x6x10.5A, a vertical split-case pump with 6-inch suction and 4-inch discharge connections on the same side. Its nominal 10.5-inch impeller and double-volute construction are listed mechanical references for primary chiller-loop and high-capacity industrial applications.

Top-pullout construction allows service access without disturbing connected piping, according to the supplied configuration data. That feature does not remove the need for project-specific clearance, lift planning, or lockout procedures. Use the approved VSX curve to confirm flow, head, NPSH, pressure class, fluid conditions, and nozzle orientation. Verify foundation, coupling, and alignment requirements before equipment selection.

Key Specifications of the Bell & Gossett VSX-VSC 4x6x10.5A Split Case Pump

- The 6-inch suction and 4-inch discharge connections define the listed nozzle sizes for system piping review.
- VSC construction places suction and discharge nozzles on the same side, affecting piping routing and layout planning.
- A nominal 10.5-inch impeller diameter provides a hydraulic configuration reference requiring curve-based duty confirmation.
- Double-volute construction is listed to reduce radial thrust within the documented vertical split-case pump arrangement.
- Top-pullout construction allows stated service access without disturbing connected piping during supported maintenance work.
- Primary chiller loops and high-capacity industrial systems are the stated application contexts for this VSC configuration.

Hydraulic Performance and Application

The Bell & Gossett VSX-VSC pump is listed for primary chiller loops and high-capacity industrial systems. Its same-side nozzles, nominal 10.5-inch impeller, and double-volute construction define configuration details rather than a fixed duty. Use the approved VSX curve to select flow and head. Confirm NPSH, system pressure, fluid properties, piping losses, and required operating conditions before specification.

Installation and System Requirements

Confirm that the 6-inch suction and 4-inch discharge nozzles match the planned same-side piping arrangement before installation. Verify foundation, alignment, coupling, pressure, fluid, and approved hydraulic-duty requirements through official project documentation. The vertical split-case assembly needs sufficient clearance for top-pullout service. Provide proper piping support and reserve lifting access before nearby equipment or fixed pipework is installed.

Service and Maintenance Considerations

Top-pullout construction allows supported service work without disturbing connected piping, but clearance and lifting requirements must be established before installation. The double-volute casing and nominal 10.5-inch impeller should be serviced according to official VSX documentation. Follow lockout, inspection, alignment, and reassembly procedures. Use manufacturer-approved components when replacing worn parts to maintain the intended pump configuration.

Why Choose the Bell & Gossett VSX-VSC 4x6x10.5A

This VSC configuration combines 6-inch suction and 4-inch discharge nozzles with same-side connection placement, a nominal 10.5-inch impeller, double-volute construction, and top-pullout service access. Buyers can compare these layout and maintenance features for chiller-loop or industrial applications. Final selection still requires confirmation of the approved VSX curve, foundation details, pressure class, and piping arrangement.

Warranty and Support

Bell & Gossett commercial pumps carry a 1-Year Limited Warranty against defects in materials and workmanship. Coverage begins at installation and ends no later than eighteen months from shipment, whichever occurs first. Seals, gaskets, elastomers, coatings, and other wear parts are excluded unless sales documentation states otherwise. Mulmotor can assist with product details and order-related questions before purchase.

Before Ordering the Bell & Gossett VSX-VSC 4x6x10.5A Split Case Pump

Before ordering, verify that your chiller-loop or industrial system requires 6-inch suction and 4-inch discharge nozzles with a same-side VSC layout. You should confirm flow, head, NPSH, pressure class, fluid requirements, foundation details, lifting clearance, and top-pullout access through approved VSX curves and drawings. Review piping routing, coupling alignment, and service requirements before purchase.
