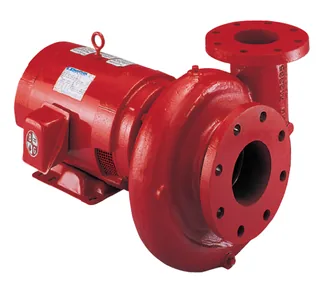

Transfer bulk water through Bell & Gossett Series 1531 4AC, a 5 HP close-coupled pump with 5-inch suction and 4-inch discharge connections. The supplied listing identifies a 1750 RPM four-pole motor and 7-inch nominal impeller for low-head cooling-tower and bulk-water service. Verify the case speed and final impeller trim against the current curve before installation, especially when replacing an older Series 1531 unit.

The bronze-fitted construction uses a small-volute, large-port arrangement intended to move substantial water with low resistance through the piping. The supplied data does not state voltage, phase, amp draw, flow, exact head, dimensions, weight, seal material, or final trim. Confirm the motor details, suction conditions, flange layout, base support, and operating point before ordering or commissioning the pump.

Key Features & Benefits

- 5 HP Motor: Supports bulk-water transfer and large commercial cooling-tower circulation.
- 1750 RPM Four-Pole Speed: Provides the listed low-speed reference for steady high-volume operation.
- 5-Inch Suction: Accommodates the specified large inlet connection for reduced piping restriction.
- 4-Inch Discharge: Defines the outlet size for compatible bulk-water system layouts.
- 7-Inch Nominal Impeller: Identifies the listed rotating component for equipment comparison.
- Bronze-Fitted Construction: Provides the specified material arrangement for compatible water service.
- Small Volute, Large Port: Supports the stated low-head bulk-transfer configuration.
- Final Trim Verification: Helps match impeller diameter to the actual flow and head requirement.

Why Choose Bell & Gossett Series 1531 4AC 5 HP

The 4AC configuration is suited to large-pipe, low-head circulation where suction capacity, impeller trim, and steady motor speed must align with the system curve.

- Build: Bronze-fitted construction, large ports, and nominal 7-inch impeller define the supplied pump arrangement.
- Value: Correct impeller trimming can help prevent over-pumping, excessive throttling, and unnecessary operating cost.
- Audience: Intended for cooling-tower contractors, industrial maintenance teams, facility engineers, and commercial HVAC installers.

Applications & Use Cases

Use Bell & Gossett Series 1531 4AC 5 HP for low-head bulk-water transfer, cooling-tower loops, and compatible large commercial circulation systems. The supplied information identifies 5-inch suction, 4-inch discharge, and a 7-inch nominal impeller, but does not provide overall dimensions, weight, base details, or port reach. Verify lifting access, alignment, and service clearance before installation.

Warranty & Support

- Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with the seller.
- Confirm the 4AC case, 5 HP motor, actual speed, connection sizes, bronze-fitted construction, and impeller trim before purchase.

Inspect suction and discharge piping, set the pump on a suitable base, align the coupling, and verify motor rotation before startup. Prime the casing, purge air, and monitor flow, pressure, vibration, seal leakage, and bearing temperature during commissioning. Purchase the Bell & Gossett Series 1531 4AC 5 HP close-coupled centrifugal pump through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
