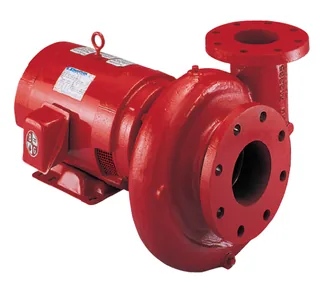

Bell & Gossett Series 1531 Model 3BC Pump 7-1/2 HP 1750 RPM Motor

Secondary HVAC loops rely on Bell & Gossett Series 1531 Model 3BC for medium-head, high-flow circulation through commercial hydronic systems. This 7.5 HP close-coupled pump operates at 1750 RPM with three-phase power, a 7-inch nominal impeller, and 4-inch suction with 3-inch discharge connections. Confirm phase rotation, system curve, suction conditions, and piping support before startup.

The Bell & Gossett e-1531 3BC uses a bronze-fitted close-coupled assembly with a four-pole low-speed motor. Its 3BC case supports a 4-inch suction and 3-inch discharge connection, while the nominal 7-inch impeller provides the specified medium-head and high-flow configuration. Verified data does not include voltage, amp draw, GPM, maximum head, seal type, operating temperature, dimensions, weight, thermal protection, or self-priming capability, so final pump selection must follow the approved curve.

Key Features of Bell & Gossett Series 1531 Model 3BC

- 7.5 HP motor supports medium-head, high-flow secondary HVAC loop circulation.
- 1750 RPM four-pole operation suits compatible commercial hydronic pumping requirements.
- Three-phase electrical configuration requires verified voltage and phase rotation.
- 4-inch suction and 3-inch discharge connections support larger HVAC piping.
- Nominal 7-inch impeller supports the specified 3BC hydraulic configuration.
- Bronze-fitted construction suits compatible commercial hydronic circulation applications.
- Close-coupled design connects motor and pump within one compact assembly.
- Flow, head, amperage, seal, temperature, dimensions, weight, protection, and warranty require confirmation.

Why Choose Bell & Gossett Series 1531 Model 3BC

This Bell & Gossett secondary HVAC pump combines large connections, low-speed operation, and close-coupled construction for commercial circulation.

- Build: Bronze-fitted construction and close-coupled architecture support fixed commercial hydronic installations with independent pipe support.
- Value: Large suction and discharge connections can reduce piping restriction when the hydraulic curve and system layout match.
- Audience: Commercial HVAC contractors, hydronic engineers, building operators, boiler technicians, and facility maintenance teams can specify this model.

Applications & Use Cases

Use the Bell & Gossett Series 1531 Model 3BC for secondary HVAC loops, commercial heating circuits, high-flow hydronic headers, and building circulation systems. Physical dimensions, unit weight, and port reach were not supplied, so verify the 4-inch suction and 3-inch discharge alignment, valve clearance, motor access, lifting room, and structural support before installation.

Warranty & Support

- Warranty: Bell & Gossett general product terms provide one year from installation or 18 months from product date code, whichever occurs first.
- Verify phase rotation, purge trapped air, inspect the mechanical seal, confirm flow direction, and check piping alignment during commissioning.

Flush debris from the loop, monitor the bronze-fitted body for leakage, and review the operating point during scheduled HVAC service. Purchase the Bell & Gossett Series 1531 Model 3BC commercial HVAC pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
