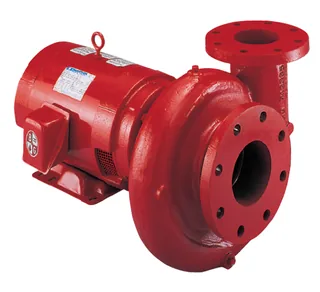

Bell & Gossett Series 1531 Model 2E Pump 7-1/2 HP 1750 RPM Motor

District cooling uses Bell & Gossett 1531 Model 2E for higher-head pumping at low RPM in commercial HVAC loops. This 7.5 HP close-coupled pump operates at 1750 RPM with a 9.5-inch nominal impeller, 3-inch suction, and 2-inch discharge connection. Confirm the 175 PSI working-pressure rating, motor phase, suction conditions, and system curve before startup.

The Bell & Gossett Series e-1531 2E uses a close-coupled four-pole configuration with large-volute construction for district cooling service. Its 3 x 2 case arrangement supports the listed suction and discharge sizes, while verified data does not include voltage, amp draw, GPM, maximum head, seal material, operating temperature, dimensions, weight, thermal protection, or self-priming capability. Match the pump to the approved hydraulic curve and support connected piping independently.

Key Features of Bell & Gossett Series 1531 Model 2E

- 7.5 HP motor supports district cooling and higher-head commercial HVAC circulation.
- 1750 RPM four-pole operation suits low-speed hydronic pumping applications.
- 3-inch suction and 2-inch discharge connections support compatible commercial piping.
- 9.5-inch nominal impeller supports the specified large-volute configuration.
- 175 PSI standard working pressure supports compatible commercial hydronic systems.
- Close-coupled design connects motor and pump within one integrated assembly.
- Series e-1531 configuration suits district cooling and higher-head HVAC circulation.
- Voltage, amperage, flow, head, seal, temperature, dimensions, weight, protection, and warranty require confirmation.

Why Choose Bell & Gossett Series 1531 Model 2E

This Bell & Gossett district cooling pump combines low-speed operation, large hydraulic connections, and a defined pressure rating.

- Build: Close-coupled construction and large-volute geometry support commercial district-cooling installations.
- Value: Low-speed operation can help control hydraulic stress when the pump curve and system demand align.
- Audience: District cooling contractors, commercial HVAC engineers, hydronic designers, facility managers, and boiler technicians can specify this model.

Applications & Use Cases

Use the Bell & Gossett Series 1531 Model 2E for district cooling, higher-head HVAC pumping, commercial hydronics, and large building circulation. Physical dimensions, unit weight, and port reach were not supplied, so verify 3-inch suction and 2-inch discharge alignment, valve spacing, motor access, lifting room, and pipe support before installation.

Warranty & Support

- Warranty: Bell & Gossett general product terms provide one year from installation or 18 months from product date code, whichever occurs first.
- Verify phase rotation, purge air, inspect seals, confirm pressure conditions, and check piping alignment during commissioning.

Flush debris from the suction line, monitor the large volute for leakage, and inspect the coupling area during scheduled service. Purchase the Bell & Gossett Series 1531 Model 2E district cooling pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
