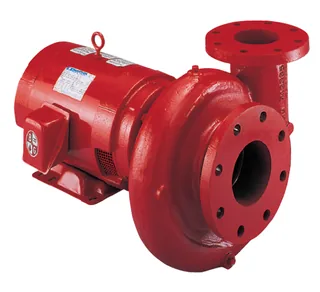

High-pressure chilled-water loops use Bell & Gossett Series 1531 Model 2AC for primary HVAC circulation and commercial booster service. This 7.5 HP close-coupled pump operates at 3500 to 3550 RPM with a nominal 7-inch impeller, while the 2.5-inch suction and 2-inch discharge connections support compatible high-flow piping. Confirm the pump curve, motor phase, suction conditions, and bronze-fitted construction before startup.

The Bell & Gossett e-1531 2AC uses a two-pole high-speed motor and bronze-fitted construction within a close-coupled assembly. Its nominal 7-inch impeller supports the specified high-pressure configuration, while verified data does not include voltage, phase, amp draw, GPM, maximum head, seal type, operating temperature, dimensions, weight, thermal protection, or self-priming capability. Match the pump to the approved hydraulic curve and prevent air entry on the suction side.

Key Features of Bell & Gossett Series 1531 Model 2AC

- 7.5 HP motor supports high-pressure booster service and chilled-water primary-loop circulation.
- 3500 to 3550 RPM operation provides the specified two-pole high-speed configuration.
- 2.5-inch suction and 2-inch discharge connections support compatible commercial HVAC piping.
- Nominal 7-inch impeller supports hydraulic performance for the specified 2AC case.
- Bronze-fitted construction suits compatible commercial hydronic and chilled-water applications.
- Close-coupled design connects motor and pump within one compact assembly.
- High-pressure configuration supports building HVAC boosting and primary water circulation.
- Voltage, phase, amperage, flow, head, seal, temperature, dimensions, weight, and warranty require confirmation.

Why Choose Bell & Gossett Series 1531 Model 2AC

This Bell & Gossett high-pressure HVAC pump combines close-coupled construction with high-speed operation and bronze-fitted hydraulics.

- Build: Bronze-fitted construction and close-coupled architecture support compatible commercial chilled-water installations.
- Value: High-speed operation can support pressure requirements when the pump curve, suction piping, and motor protection match.
- Audience: Commercial HVAC contractors, chilled-water installers, building engineers, hydronic designers, and facility maintenance teams can specify this model.

Applications & Use Cases

Use the Bell & Gossett Series 1531 Model 2AC for chilled-water primary loops, high-pressure HVAC boosting, commercial hydronics, and building circulation. Physical dimensions, unit weight, and port reach were not supplied, so verify the 2.5-inch suction and 2-inch discharge alignment, valve clearance, motor access, lifting room, and piping support before installation.

Warranty & Support

- Warranty: Bell & Gossett general product terms provide one year from installation or 18 months from product date code, whichever occurs first.
- Verify motor data, purge trapped air, inspect the mechanical seal, confirm rotation, and check system pressure during commissioning.

Flush debris from the suction line, protect the pump from cavitation, and inspect the impeller and seal during scheduled HVAC maintenance. Purchase the Bell & Gossett Series 1531 Model 2AC high-pressure HVAC pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
