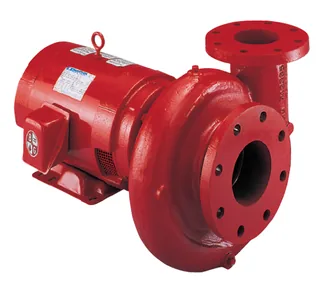

Move commercial cooling water with Bell & Gossett 168040 Series 1535 359T, a close-coupled centrifugal pump listed with a 2 HP three-phase motor. Its 208–230/460 V configuration, 175 psi working pressure, and ceramic/carbon/Buna-N seal suit high-flow cooling and industrial process-water service. The product title identifies 1/2 HP, while the supplied specification identifies 2 HP, so confirm the motor nameplate before purchase.

The pump operates within the Series 1535 close-coupled arrangement, but the supplied data does not state flow, head, amp draw, RPM, connection size, dimensions, weight, or motor enclosure. Verify the 359T model, horsepower, electrical data, suction conditions, and operating curve before installation. Do not select the pump from the title alone.

Key Features & Benefits

- 2 HP Listed Motor: Supports high-flow commercial cooling and industrial process-water circulation.
- Three-Phase Operation: Uses the supplied 208–230/460 V configuration for compatible facilities.
- 175 psi Maximum Pressure: Establishes the listed pressure boundary for compatible systems.
- Close-Coupled Design: Keeps the motor and centrifugal pump in one integrated assembly.
- Ceramic/Carbon/Buna-N Seal: Helps contain circulating fluid around the shaft.
- Series 1535 Platform: Provides a defined product family for commercial pump comparison.
- Motor Verification Required: Helps resolve the horsepower conflict between the title and supplied specification.
- Industrial Process-Water Use: Directs selection toward larger cooling and transfer systems.

Why Choose Bell & Gossett 168040 Series 1535 359T

The 359T may fit high-flow cooling and process-water work, but the horsepower conflict must be resolved before electrical or hydraulic selection.

- Build: Close-coupled construction, specified mechanical seal, and Series 1535 design define the supplied arrangement.
- Value: Verifying the motor before purchase can prevent incorrect wiring, controls, and replacement labor.
- Audience: Suited to commercial HVAC contractors, process-water technicians, facility engineers, and industrial maintenance teams.

Applications & Use Cases

Use Bell & Gossett 168040 Series 1535 359T for high-flow commercial cooling, industrial process water, and compatible three-phase systems after confirming the motor rating. The supplied data does not provide dimensions, unit weight, connection size, or port reach, so verify pipe alignment, lifting access, service clearance, and system-curve requirements before installation.

Warranty & Support

- Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with the seller.
- Request written confirmation of SKU 168040, model 359T, horsepower, voltage, phase, pressure rating, and seal configuration before ordering.

Do not energize the pump until the motor nameplate, horsepower, phase, and voltage are confirmed. Fill and purge the system, inspect the mechanical seal, and monitor pressure, vibration, temperature, and leakage during commissioning. Purchase the Bell & Gossett 168040 Series 1535 359T commercial centrifugal pump through Mulmotor.com for authentic equipment, applicable warranty support, and model-verification assistance.
