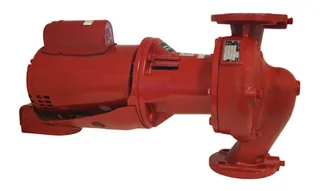

Move industrial HVAC water with Bell & Gossett 1EF027LF e611S, a Series e-60 pump listed for 3/4 HP single-phase operation and 2-inch flanged service. Its 115 or 208–230 V configuration and 4.875-inch bronze impeller suit large closed-loop systems where higher circulation capacity is required. Confirm the exact impeller diameter and current manufacturer reference before installation.

The close-coupled in-line assembly uses the supplied 2 x 2 x 5.25 configuration and carries a 250°F maximum temperature. Manufacturer reference data may identify a slightly different impeller diameter for e611S, so verify the current curve, nameplate, flow, head, pressure, amp draw, dimensions, and weight before startup.

Key Features & Benefits

- 3/4 HP Motor: Supports industrial HVAC booster service and larger closed-loop circulation.
- Single-Phase Operation: Accepts 115 or 208–230 V service for flexible replacement planning.
- 2-Inch Flanged Size: Helps contractors verify larger commercial piping compatibility.
- Bronze Impeller: Provides the listed rotating material for compatible hydronic service.
- 250°F Maximum Temperature: Establishes the listed fluid-temperature limit for compatible heating systems.
- Close-Coupled In-Line Design: Fits commercial piping without a separate base-mounted arrangement.
- Impeller Verification: Helps prevent a trim mismatch between listing and manufacturer reference data.
- Series e-60 Platform: Provides a defined product family for industrial HVAC comparison.

Why Choose Bell & Gossett 1EF027LF e611S

The e611S gives contractors a larger 2-inch Series e-60 configuration for industrial HVAC and closed-loop circulation, with impeller data requiring final confirmation.

- Build: Close-coupled in-line construction, bronze impeller, and 2-inch flanged body define the supplied arrangement.
- Value: Voltage flexibility and defined connection size can simplify compatible replacement planning.
- Audience: Suited to HVAC contractors, boiler technicians, facility engineers, and industrial maintenance teams.

Applications & Use Cases

Use Bell & Gossett 1EF027LF e611S for industrial HVAC boosting, large closed loops, boiler branches, and compatible 2-inch flanged piping. The supplied data does not provide overall dimensions, unit weight, or port-to-port reach, so verify impeller trim, flange spacing, valve clearance, motor access, and service space before installation.

Warranty & Support

- 3-Year Limited Warranty: Series e-60 pump coverage should be confirmed against current manufacturer terms.
- Match SKU 1EF027LF, model e611S, horsepower, voltage, pump size, impeller, and temperature rating before ordering.

Fill and purge the loop, inspect flange gaskets, verify voltage, and check the seal area for leakage. Confirm the impeller specification before commissioning, then monitor vibration, temperature, noise, and flow. Purchase the Bell & Gossett 1EF027LF e611S Series e-60 commercial hydronic pump through Mulmotor.com for authentic equipment, applicable warranty support, and model-verification assistance.
