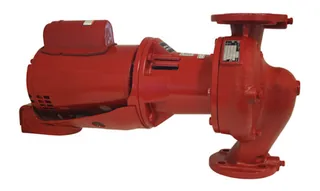

Circulate a 2-inch commercial loop with Bell & Gossett e610S Series e-60, a 1/2 HP single-phase pump for commercial boiler-primary service. Its 115 or 208–230 V configuration, 2-inch flanged body, and 4.375-inch bronze impeller suit larger hydronic piping where the electrical supply and system curve already match. Confirm the impeller diameter before ordering because manufacturer reference data may identify a different trim for this SKU.

The close-coupled in-line assembly uses the 2 x 2 x 5.25 pump size and carries a 175 psi maximum working pressure in the supplied data. Flow, head, amp draw, seal material, dimensions, weight, and final impeller information were not fully provided. Verify flooded suction, flange alignment, voltage, and the current Series e-60 submittal before startup.

Key Features & Benefits

- 1/2 HP Motor: Supports high-volume 2-inch commercial boiler and hydronic circulation.
- Single-Phase Operation: Accepts 115 or 208–230 V service for flexible replacement planning.
- 2-Inch Flanged Size: Helps contractors verify compatibility with larger commercial piping.
- 4.375-Inch Bronze Impeller: Identifies the supplied rotating component for replacement comparison.
- 175 psi Maximum Pressure: Establishes the listed pressure boundary for compatible systems.
- Close-Coupled In-Line Design: Fits commercial piping without a separate base-mounted assembly.
- Series e-60 Platform: Provides a defined product family for commercial boiler-primary service.
- Impeller Verification: Helps prevent a mismatch between listing data and current manufacturer references.
- 2 x 2 x 5.25 Pump Size: Gives installers a clear dimensional reference for replacement checks.

Why Choose Bell & Gossett 1EF026LF e610S

The e610S gives contractors a single-phase, 2-inch Series e-60 pump for commercial boiler-primary and high-volume hydronic circulation.

- Build: Close-coupled in-line construction, bronze impeller, and 2-inch flanged body define the supplied arrangement.
- Value: Single-phase voltage flexibility and a defined pump size help simplify replacement planning.
- Audience: Suited to boiler contractors, commercial HVAC installers, facility engineers, and hydronic maintenance teams.

Applications & Use Cases

Use Bell & Gossett 1EF026LF e610S for commercial boiler primary loops, high-volume 2-inch hydronics, and compatible HVAC circulation. The supplied data identifies a 2 x 2 x 5.25 configuration but does not provide overall dimensions, unit weight, or port reach. Verify flange spacing, valve access, impeller trim, and service clearance before installation.

Warranty & Support

- 3-Year Limited Warranty: Series e-60 pump coverage should be confirmed against the current manufacturer terms.
- Match SKU 1EF026LF, model e610S, horsepower, voltage, pump size, impeller, pressure rating, and application before ordering.

Fill and purge the loop, inspect flange gaskets and the seal area, verify the selected voltage, and confirm impeller data before startup. Monitor flow, vibration, temperature, leakage, and operating pressure during commissioning. Purchase the Bell & Gossett 1EF026LF e610S Series e-60 commercial hydronic pump through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
