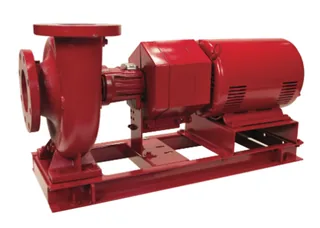

Industrial circulation systems use Bell & Gossett e-1510 1.5BC when a 5 HP TEFC motor and 1750 RPM four-pole speed match the required duty point. This base-mounted centrifugal pump uses a 2.5-inch suction and 1.5-inch discharge connection for industrial circulation in high-humidity areas. Prime the pump as required, support connected piping, and confirm three-phase motor data before startup.

The 1.5BC case uses a 2.5-inch suction connection and 1.5-inch discharge connection, while the TEFC motor operates at 1750 RPM. Regreasable ball bearings support the rotating assembly, and the base-mounted arrangement allows alignment between the pump and motor. Verified data does not include voltage, phase, amp draw, GPM, maximum head, impeller material, seal type, operating temperature, dimensions, weight, thermal protection, or self-priming capability, so final selection must follow the approved pump curve.

Key Features of Bell & Gossett e-1510 1.5BC

- 5 HP motor supports industrial circulation and high-humidity mechanical-room applications.
- 1750 RPM four-pole operation suits compatible commercial and industrial hydronic systems.
- TEFC motor enclosure helps protect internal components from dust and moisture exposure.
- Base-mounted design supports stable anchoring, coupling access, and pump-motor alignment.
- 2.5-inch suction and 1.5-inch discharge connections match the specified 1.5BC case.
- Regreasable ball bearings support scheduled lubrication and rotating assembly maintenance.
- Industrial circulation profile suits high-humidity areas with appropriate motor protection.
- Voltage, phase, amp draw, flow, head, seal, temperature, dimensions, weight, and warranty require confirmation.

Why Choose Bell & Gossett e-1510 1.5BC

This Bell & Gossett industrial circulation pump combines TEFC protection, low-speed operation, and base-mounted alignment for humid plant environments.

- Build: TEFC construction and regreasable bearings support industrial service, while final casing and seal details require verification.
- Value: Four-pole operation and proper curve selection can reduce hydraulic stress, overheating, and unplanned service interruptions.
- Audience: Industrial pump contractors, plant engineers, HVAC installers, facility maintenance teams, and process-water technicians can specify this model.

Applications & Use Cases

Use the Bell & Gossett e-1510 1.5BC for industrial circulation, high-humidity plant rooms, commercial HVAC loops, process-water systems, and hydronic headers. Physical dimensions, unit weight, and port reach were not supplied, so verify base clearance, coupling access, 2.5-inch suction alignment, 1.5-inch discharge spacing, valve clearance, and lifting requirements before installation.

Warranty & Support

- Warranty: Bell & Gossett general product terms provide one year from installation or 18 months from product date code, whichever occurs first.
- Check phase rotation, bearing lubrication, suction conditions, piping support, seal condition, and motor current during commissioning.

Prime the pump as required, flush debris from the suction line, inspect the mechanical seal, and lubricate bearings according to approved instructions. Purchase the Bell & Gossett e-1510 1.5BC industrial circulation pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
