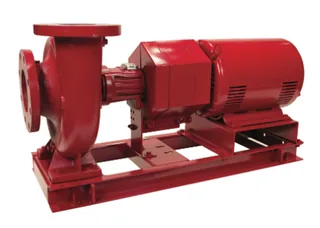

Harsh mechanical rooms need Bell & Gossett 4AD e-1510 for medium-head circulation where TEFC protection and moisture resistance matter. This 5 HP three-phase pump operates at 1750 to 1800 RPM through a base-mounted configuration, while IP54 or IP55-equivalent protection supports compatible outdoor or high-humidity rooms. Confirm the 5 x 4 x 9.5 case, phase rotation, motor data, and suction conditions before startup.

The Series e-1510 4AD uses an ODP or protected motor configuration with a 5 x 4 x 9.5 case designation. Its 1750 to 1800 RPM operating range supports the listed medium-head circulation profile, but verified data does not include GPM, maximum head, voltage, amp draw, impeller material, seal type, dimensions, weight, thermal protection, or self-priming capability. Confirm the enclosure rating and installation environment before commissioning.

Key Features of Bell & Gossett 4AD Series e-1510

- 5 HP motor supports medium-head HVAC circulation and industrial water movement.
- 1750 to 1800 RPM operation suits the specified 4AD pump configuration.
- Three-phase electrical design supports compatible commercial and industrial power systems.
- ODP or protected enclosure selection requires confirmation for outdoor installations.
- 5 x 4 x 9.5 case identifies the specified hydraulic arrangement.
- Base-mounted construction supports stable anchoring, alignment, and service access.
- IP54 or IP55-equivalent protection supports compatible dust and moisture conditions.
- Flow, head, voltage, amperage, impeller, seal, dimensions, weight, protection, and warranty require confirmation.

Why Choose Bell & Gossett 4AD Series e-1510

This Bell & Gossett industrial HVAC pump combines base-mounted stability with enclosure protection for demanding mechanical-room conditions.

- Build: Base-mounted construction and protected motor options support compatible high-humidity and outdoor circulation installations.
- Value: Enclosure protection can reduce moisture-related motor issues when installation conditions match the selected rating.
- Audience: Industrial HVAC contractors, facility engineers, pump installers, plant maintenance teams, and commercial heating specialists can specify this model.

Applications & Use Cases

Use the Bell & Gossett 4AD Series e-1510 for medium-head circulation, outdoor mechanical rooms, high-humidity HVAC spaces, and industrial water systems. Physical dimensions, unit weight, and port reach were not supplied beyond the 5 x 4 x 9.5 case designation, so verify base clearance, pipe alignment, valve spacing, motor ventilation, lifting room, and enclosure requirements.

Warranty & Support

- Warranty: Bell & Gossett general product terms provide one year from installation or 18 months from product date code, whichever occurs first.
- Verify enclosure suitability, phase rotation, purge air, inspect seals, confirm alignment, and check motor protection during commissioning.

Flush debris from the suction line, inspect the base and coupling, and monitor the motor enclosure during scheduled service. Purchase the Bell & Gossett 4AD Series e-1510 medium-head HVAC pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
