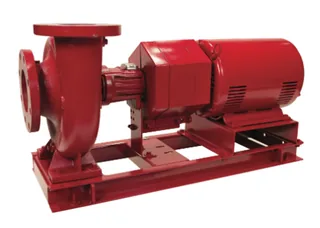

High-flow boiler-primary service can evaluate the Bell & Gossett 2EB Series e-1510 with 10 HP, 1,750 RPM operation, an ODP motor, 4-inch suction, 3-inch discharge, and a heavy-duty groutable steel base.

The base-mounted configuration provides a separate pump and motor arrangement for foundation and alignment planning. The supplied record identifies high-flow transfer and main-boiler primary service, while exact flow, head, NPSH, pressure, temperature, seal, and efficiency values require the selected performance documentation.

Construction Details

- The 10 HP motor establishes the listed power class for boiler-room electrical planning.
- Operating at 1,750 RPM provides the speed reference for hydraulic curve selection.
- An ODP enclosure requires environmental conditions suitable for open drip-proof motors.
- The 2EB case uses 4-inch suction and 3-inch discharge connections for piping coordination.
- A groutable steel base provides the documented support arrangement for foundation planning.
- Base-mounted construction requires shaft alignment between the pump and motor.
- Main-boiler primary and high-flow transfer service define the application context.

Hydraulic Performance and Application

The 2EB configuration is listed for main-boiler primary service and high-flow transfer, but the supplied record does not provide exact flow, head, NPSH, pressure, pump curve, or efficiency data. The 1,750 RPM speed identifies motor operation only, so final selection requires the actual system duty point.

Installation Requirements

Confirm 4-inch suction and 3-inch discharge piping, ODP motor conditions, three-phase electrical requirements, groutable base support, shaft alignment, rotation, coupling protection, foundation strength, and service clearance before startup. The base-mounted arrangement requires stable anchoring and alignment after piping connections are completed.

Warranty and Maintenance

Bell & Gossett provides an 18-Month Limited Warranty from shipment or a 1-Year Limited Warranty from installation, whichever occurs first, covering defects in materials and workmanship. Proper installation and intended use are required, while misuse, alteration, negligence, and contrary operation are excluded. Base alignment and coupling inspection remain important service checks. Mulmotor provides order support.
