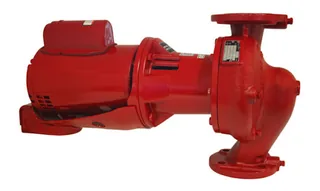

Bell & Gossett 1EF016LF e604S Series e-60 Pump 1/4 HP

Closed-loop hydronic systems use Bell & Gossett 1EF016LF e604S for secondary zoning and commercial heating circulation. Its 1/4 HP single-phase motor accepts 115 or 208 to 230 V, while the cast iron lead-free body and 4.375-inch bronze impeller support the specified 1.25 x 1.25 x 5.25 pump configuration. Confirm flange alignment, system curve, motor voltage, and flooded conditions before startup.

The Series e-60 e604S uses a single-phase motor with a flanged 1-1/4-inch connection arrangement and bronze impeller. Its cast iron body supports closed-loop hydronic service, while the supplied specifications do not include GPM, maximum head, amp draw, RPM, seal material, operating temperature, dimensions beyond the pump designation, weight, thermal protection, or self-priming capability. Match the pump to the selected secondary-zone duty point before installation.

Key Features of Bell & Gossett 1EF016LF Series e-60 e604S

- 1/4 HP motor supports closed-loop hydronic heating and secondary zoning applications.
- 115 or 208 to 230 V single-phase operation suits compatible heating systems.
- 1.25 x 1.25 x 5.25 configuration supports specified commercial hydronic piping.
- 1-1/4-inch flanged connection supports compatible secondary-loop installations.
- 4.375-inch bronze impeller supports the specified e604S hydraulic configuration.
- Cast iron lead-free body supports closed-loop hydronic heating service.
- Series e-60 design suits secondary zoning and commercial heating circulation.
- Flow, head, amperage, RPM, seal, temperature, weight, protection, and warranty require confirmation.

Why Choose Bell & Gossett 1EF016LF Series e-60 e604S

This Bell & Gossett hydronic circulator combines flexible voltage with a compact flanged design for secondary heating zones.

- Build: Cast iron construction and bronze impeller support compatible closed-loop hydronic applications.
- Value: Flexible voltage selection can simplify replacement planning where the system curve and flange pattern match.
- Audience: HVAC contractors, boiler technicians, hydronic installers, facility engineers, and heating-zone service teams can specify this model.

Applications & Use Cases

Use the Bell & Gossett 1EF016LF Series e-60 e604S for closed-loop hydronic heating, secondary zoning, commercial heating circuits, and compatible HVAC systems. The 1.25 x 1.25 x 5.25 designation supports layout planning, while unit weight and port reach were not supplied, so verify flange spacing, valve clearance, motor access, wiring position, and service room before installation.

Warranty & Support

- Warranty: Bell & Gossett Series e-60 standard models carry a 3-Year Workmanship Warranty, subject to manufacturer terms.
- Verify voltage, purge trapped air, inspect the seal area, confirm flange alignment, and check system flow during commissioning.

Flush system debris, monitor the cast iron body for leakage, and inspect the impeller and flange during scheduled service. Purchase the Bell & Gossett 1EF016LF Series e-60 e604S hydronic circulator from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
