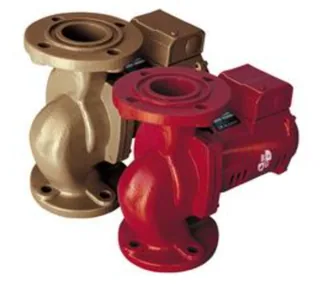

Bell & Gossett 1BL063 PL-130/2″ Pump 2/5 HP Motor

High-volume hydronic systems rely on Bell & Gossett 1BL063 PL-130/2 for commercial heating circulation through compatible 2-inch flanged piping. Its 2/5 HP single-phase motor operates at 3300 RPM, while the cast iron body supports closed-loop heating and large-volume hydronic service. Fill and vent the system, verify flange alignment, and confirm the operating point before energizing this circulator.

The Bell & Gossett Series PL PL-130/2 uses a 2-inch flanged connection, 115 V single-phase power, and a cast iron body intended for closed loops. Its close-coupled booster design suits high-velocity commercial heating, but verified data does not include GPM, maximum head, amp draw, seal type, operating temperature, dimensions, weight, thermal protection, or self-priming capability. Match the circulator to the system curve and protect the pump from air entry and dry running.

Key Features of Bell & Gossett 1BL063 PL-130/2

- 2/5 HP motor supports high-velocity commercial heating and large hydronic circulation.
- 3300 RPM operation provides the specified high-speed circulation profile for compatible systems.
- 115 V single-phase power suits compatible commercial and light-industrial electrical circuits.
- 2-inch flanged connection accommodates larger hydronic piping and commercial heating headers.
- Cast iron body supports closed-loop heating systems with compatible water chemistry.
- Series PL close-coupled configuration supports compact commercial booster-pump installation.
- High-volume hydronic design suits large commercial heating and circulation applications.
- GPM, maximum head, amperage, seal, temperature, dimensions, weight, protection, and warranty require confirmation.

Why Choose Bell & Gossett 1BL063 PL-130/2

This Bell & Gossett commercial heating circulator combines a 2-inch flange with high-speed operation for large closed-loop systems.

- Build: Cast iron construction and close-coupled design support fixed hydronic installation where piping alignment remains correct.
- Value: A larger flange can reduce piping restriction, while correct system matching helps limit overheating and service calls.
- Audience: Commercial heating contractors, hydronic engineers, boiler technicians, facility managers, and mechanical-room installers can specify this pump.

Applications & Use Cases

Use the Bell & Gossett 1BL063 PL-130/2 for commercial heating, large-volume hydronics, closed-loop boiler circuits, and high-velocity circulation headers. Physical dimensions, unit weight, and port reach were not supplied, so verify the 2-inch flange spacing, valve clearance, motor service area, wiring access, and lifting requirements before installation.

Warranty & Support

- Warranty: Series PL warranty provides 18 months from installation or three years from product date code, whichever occurs first.
- Check flange gaskets, purge trapped air, inspect the seal area, and verify 115 V motor operation during commissioning.

Flush debris from the loop, confirm closed-loop fluid compatibility, and monitor the cast iron body for leakage during scheduled service. Purchase the Bell & Gossett 1BL063 PL-130/2 commercial hydronic pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
