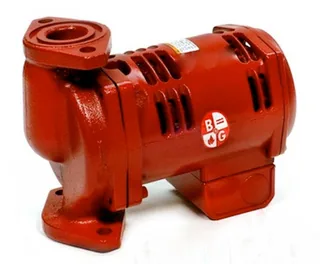

Bell & Gossett 1BL034 PL-75 1/6 HP Motor

Medium-head radiator systems use Bell & Gossett 1BL034 PL-75 for closed-loop hydronic circulation and convector heating applications. Its 1/6 HP single-phase motor operates at 115 V, while the cast iron body, alloy steel shaft, and glass-refined PPO impeller support compatible heating loops. Fill and vent the system, verify the pump remains flooded, and confirm the operating curve before startup.

The Series PL PL-75 uses a cast iron body intended for closed loops and a glass-refined PPO impeller for hydronic circulation. Its 115 V electrical configuration supports compatible single-phase circuits, while the alloy steel shaft transfers motor power through the pump assembly. Verified data does not include GPM, maximum head, amp draw, seal material, operating temperature, dimensions, weight, thermal protection, or self-priming capability, so confirm complete system requirements before installation.

Key Features of Bell & Gossett 1BL034 PL-75

- 1/6 HP motor supports medium-head radiator, convector, and hydronic circulation systems.
- 115 V single-phase operation suits compatible residential and commercial heating circuits.
- Cast iron body provides a rigid housing for closed-loop hydronic applications.
- Alloy steel shaft supports torque transfer through the Series PL pump assembly.
- Glass-refined PPO impeller supports hydraulic circulation in compatible heating systems.
- PL-75 configuration suits medium-head hydronic circulation and radiator distribution.
- Closed-loop body design requires compatible fluid chemistry and proper system treatment.
- Flow, head, amperage, seal, temperature, dimensions, weight, protection, and warranty require confirmation.

Why Choose Bell & Gossett 1BL034 PL-75

This Bell & Gossett hydronic circulator combines compact single-phase power with cast iron construction for closed-loop heating service.

- Build: Cast iron, alloy steel, and glass-refined PPO materials support compatible radiator and convector circulation applications.
- Value: A compact 115 V pump can simplify replacement work when the existing system curve and connection layout match.
- Audience: Hydronic contractors, boiler technicians, radiator installers, HVAC service teams, and facility maintenance professionals can specify this model.

Applications & Use Cases

Use the Bell & Gossett 1BL034 PL-75 for radiator systems, convector heating, closed-loop hydronics, and medium-head commercial circulation. Physical dimensions, unit weight, and connection reach were not supplied, so verify pipe spacing, valve clearance, motor access, wiring position, and service room before installation.

Warranty & Support

- Warranty: Series PL warranty provides 18 months from installation or three years from product date code, whichever occurs first.
- Check system fill, purge trapped air, inspect the seal area, verify voltage, and confirm flow direction during commissioning.

Flush system debris, monitor the cast iron body for leakage, and inspect the impeller and shaft during scheduled maintenance. Purchase the Bell & Gossett 1BL034 PL-75 hydronic circulation pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
