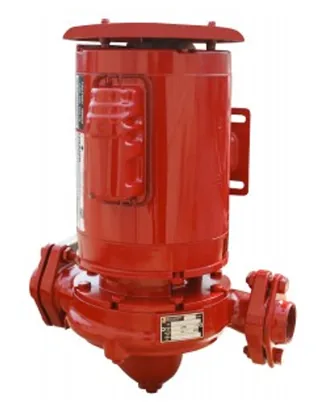

Bell & Gossett 179016LF 90-10T Pump 3 HP Motor

Move high-volume building water with Bell & Gossett 179016LF 90-10T, a Series 90 vertical in-line centrifugal pump using a 3 HP three-phase motor. Its 7-inch bronze impeller and 175 psi working pressure suit industrial cooling and main-building loops where the actual system curve supports the pump. The manufacturer submittal identifies the 90-10T as a 208–230/460 V, 3500 RPM three-phase model with open drip proof motor construction.

The close-coupled pump uses a bronze-fitted, lead-free component arrangement and standard ceramic, carbon, and Buna-N sealing. The supplied data does not state flow, head, amp draw, connection size, dimensions, or weight, so horsepower and impeller diameter should not determine selection alone. Verify the 3500 RPM motor, electrical protection, suction conditions, and current pump curve before installation.

Key Features & Benefits

- 3 HP Motor: Supports industrial cooling and main-building HVAC circulation.
- Three-Phase Operation: Fits compatible 208–230/460 V commercial electrical service.
- 7-Inch Bronze Impeller: Identifies the listed rotating component for pump comparison.
- 3500 RPM Configuration: Provides a high-speed reference for accurate motor matching.
- 175 psi Maximum Pressure: Establishes the stated pressure boundary for compatible systems.
- Lead-Free Components: Provide the supplied material designation for application review.
- Vertical In-Line Design: Fits compatible building-loop piping without a separate base-mounted arrangement.
- Open Drip Proof Motor: Identifies the enclosure style for proper equipment placement.
- Series 90 Platform: Provides a defined product family for industrial HVAC replacement.

Why Choose Bell & Gossett 179016LF 90-10T

The 90-10T offers a 3 HP, high-speed Series 90 configuration for industrial cooling and main-building circulation where vertical in-line installation is appropriate.

- Build: Bronze-fitted construction, 7-inch impeller, ODP motor, and vertical in-line layout define the supplied pump.
- Value: The 175 psi rating and defined motor configuration help contractors compare compatible industrial replacements.
- Audience: Suited to industrial HVAC contractors, cooling-plant technicians, facility engineers, and commercial maintenance teams.

Applications & Use Cases

Use Bell & Gossett 179016LF 90-10T for industrial cooling, main-building HVAC loops, and compatible vertical in-line piping. The supplied data does not provide overall dimensions, unit weight, connection size, or port-to-port reach, so verify pipe centerlines, valve clearance, lifting access, motor space, and working pressure before installation.

Warranty & Support

- Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with the seller.
- Match SKU 179016LF, model 90-10T, 3 HP motor, actual RPM, voltage, phase, impeller, and enclosure before ordering.

Prime the pump, purge air, verify phase rotation, inspect the flange and seal areas, and confirm the 3500 RPM motor before startup. Monitor pressure, vibration, temperature, leakage, and operating flow during commissioning. Purchase the Bell & Gossett 179016LF 90-10T Series 90 industrial HVAC pump through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
