Bell & Gossett 172743LF 610T Series 60 Pump With 1/2 HP Motor

Replace a worn commercial circulator with Bell & Gossett 172743LF 610T, a 1/2 HP Series 60 pump for medium-flow three-phase HVAC and secondary hydronic heating. Its 2-inch flanged connections suit larger commercial piping, while the three-piece flex-coupled design gives service technicians a familiar arrangement to inspect during scheduled maintenance. Prime and vent the loop before energizing, then confirm the pump operates within the approved system curve.

The 208–230/460 V three-phase motor drives a 5-1/4-inch bronze impeller in the Series 60 maintenance-free platform. The listed 2 x 2 x 5-1/4 pump size provides the connection reference needed for replacement checks, but flow, head, pressure, amp draw, seal material, and self-priming capability were not provided. Verify flange alignment, phase rotation, suction conditions, and motor protection before startup.

Key Features & Benefits

- ⚡ Three-Phase Motor: Supports 208–230/460 V service for commercial HVAC replacement.
- 🔗 2-Inch Flanged Connections: Fit compatible larger headers for straightforward piping checks.
- 🌀 5-1/4-Inch Bronze Impeller: Provides the specified rotating component for reliable loop circulation.

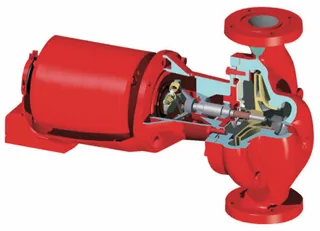

- 🔧 Three-Piece Flex-Coupled Design: Gives technicians a familiar layout for practical service access.
- 🛡️ Series 60 Maintenance-Free Platform: Helps reduce routine care and support lower maintenance demand.

Why Choose Bell & Gossett 172743LF 610T?

The 610T is a practical match for commercial hydronic systems that already use three-phase power and 2-inch flanged piping. Its flex-coupled three-piece layout also gives service technicians a clear assembly to inspect during scheduled maintenance.

- Build: Bronze impeller, flanged connections, and three-piece flex-coupled construction suit commercial HVAC service; housing material and enclosure rating were not supplied.
- Value: Maintenance-free construction can reduce routine service work, while correct alignment helps protect the coupling, bearings, and seal area.
- Audience: Designed for commercial HVAC contractors, boiler technicians, facility engineers, and secondary-heating maintenance teams.

Applications & Use Cases

Use Bell & Gossett 172743LF 610T for medium-flow three-phase HVAC loops, secondary hydronic heating, boiler branches, and commercial mechanical-room circulation. The supplied pump size is 2 x 2 x 5-1/4, but overall dimensions, unit weight, and port-to-port reach were not listed separately. Check flange spacing, pipe support, motor access, and coupling clearance before installation.

Warranty & Support

- 1-Year Limited Warranty, subject to the manufacturer’s applicable terms, installation requirements, and authorized-claim procedures.
- Verify SKU 172743LF and model 610T against the existing nameplate before ordering.

Fill and vent the loop, flush the piping, inspect flange gaskets, check coupling alignment, and confirm the three-phase connection is correct. Watch the seal area for leakage and monitor vibration during startup, especially when replacing a pump on older pipework. Purchase the Bell & Gossett 172743LF 610T Series 60 HVAC circulating pump through the store domain associated with this listing for authentic equipment, 1-Year Limited Warranty coverage, and pump support.
