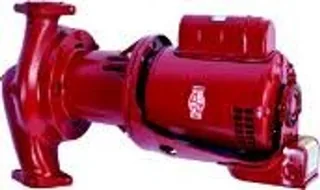

Bell & Gossett 172738LF 608T Series 60 Pump With 1/2 HP Motor

Bell & Gossett 172738LF 608T supports medium-head three-phase hydronics in commercial HVAC zones and secondary heating loops. The 1/2 HP Series 60 pump uses a cast-iron bronze-fitted body and a 1-1/4-inch connection size, making it a useful replacement reference for compatible mechanical-room piping. Confirm the flange arrangement, system curve, and phase rotation before commissioning.

The 208–230/460 V three-phase motor drives a 4.94-inch bronze impeller within a maintenance-free Series 60 assembly. A carbon, ceramic, and Buna-N mechanical seal manages fluid around the shaft, while the three-piece flex-coupled layout supports the specified pump construction. The supplied data does not state flow, head, amp draw, dimensions, or weight, so verify those details against the submittal before installation.

Key Features & Benefits

- 1/2 HP Motor: Supports medium-head circulation in compatible commercial hydronic systems.
- Three-Phase Operation: Fits 208–230/460 V service for commercial electrical compatibility.
- 1-1/4-Inch Pump Size: Helps contractors compare the pump with existing flanged piping.
- 4.94-Inch Bronze Impeller: Provides a clear rotating-component reference for replacement matching.
- Cast-Iron Bronze-Fitted Body: Combines a specified casing with a bronze impeller for compatible hydronic service.
- Three-Piece Flex-Coupled Design: Gives technicians a familiar assembly for inspection and service access.
- Carbon/Ceramic/Buna-N Seal: Helps contain circulating fluid around the shaft during normal operation.

Why Choose Bell & Gossett 172738LF 608T

The 608T combines a 1-1/4-inch connection size, bronze impeller, and three-phase motor in a Series 60 arrangement suited to commercial HVAC zones and secondary heating loops.

- Build: Cast iron, bronze impeller, flex-coupled three-piece construction, and specified mechanical seal materials identify the pump assembly.
- Value: Maintenance-free Series 60 construction can reduce routine lubrication tasks during normal hydronic service.
- Audience: Suited to commercial HVAC contractors, boiler technicians, facility engineers, and hydronic replacement specialists.

Applications & Use Cases

Use Bell & Gossett 172738LF 608T for medium-head three-phase hydronics, commercial HVAC zones, boiler branches, and compatible secondary heating loops. The supplied pump size is 1-1/4 inches by 1-1/4 inches by 5-1/4 inches, but overall dimensions, weight, and port-to-port reach were not separately stated. Check flange spacing, valve clearance, pipe support, and coupling access before installation.

Warranty & Support

- Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with the seller.
- Match SKU 172738LF and model 608T against the existing nameplate, pump size, phase, and voltage.

Fill and vent the loop, flush the piping, inspect the mechanical seal and flange gaskets, and confirm correct three-phase rotation. Monitor vibration, sound, leakage, and motor temperature during commissioning, then compare operation with the approved system curve. Purchase the Bell & Gossett 172738LF 608T Series 60 commercial hydronic pump through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
