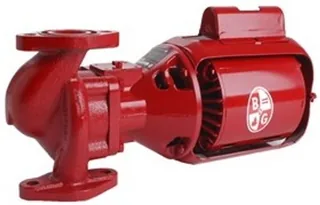

Bell & Gossett 172701LF 601S Series 60 Pump 1/4 HP

Small commercial heating uses Bell & Gossett 172701LF 601S for HVAC circulation and compact hydronic zone service. Its 1/4 HP single-phase motor accepts 115 or 208 to 230 V, while the 1 x 1 x 5-1/4 configuration, cast iron body, and lead-free bronze impeller support compatible commercial piping. Confirm the Series 60 maintenance-free design, system curve, flange alignment, and motor voltage before startup.

The Series 60 601S uses a cast iron hydronic-standard body with a bronze impeller and single-phase electrical configuration. Its compact 1 x 1 x 5-1/4 pump size supports smaller piping layouts, while verified data does not include GPM, maximum head, amp draw, RPM, seal material, operating temperature, dimensions beyond the pump designation, weight, thermal protection, or self-priming capability. Match the circulator to the heating-loop duty point before installation.

Key Features of Bell & Gossett 172701LF Series 60 601S

- 1/4 HP motor supports small commercial hydronic heating and HVAC circulation.
- 115 or 208 to 230 V single-phase operation suits compatible heating systems.
- 1 x 1 x 5-1/4 configuration supports compact hydronic piping arrangements.
- Cast iron body provides a rigid housing for commercial heating circulation.
- Lead-free bronze impeller supports compatible commercial water-system applications.
- Series 60 Maintenance-Free design reduces routine lubrication requirements during operation.
- Compact pump size suits small commercial heating and HVAC zones.
- Flow, head, amperage, RPM, seal, temperature, weight, protection, and warranty require confirmation.

Why Choose Bell & Gossett 172701LF Series 60 601S

This Bell & Gossett compact circulator combines flexible single-phase voltage with maintenance-free construction for commercial hydronic heating.

- Build: Cast iron, lead-free bronze, and maintenance-free Series 60 construction support compatible HVAC systems.
- Value: Compact dimensions and reduced lubrication requirements can simplify small commercial heating maintenance.
- Audience: Commercial HVAC contractors, boiler technicians, hydronic installers, facility managers, and heating service teams can specify this model.

Applications & Use Cases

Use the Bell & Gossett 172701LF Series 60 601S for small commercial hydronic heating, HVAC circulation, boiler loops, and compatible zone systems. The 1 x 1 x 5-1/4 designation supports layout planning, while unit weight and port reach were not supplied, so verify pipe spacing, flange clearance, motor access, wiring position, and service room before installation.

Warranty & Support

- Warranty: Bell & Gossett Maintenance-Free Series 60 pumps and motors carry a 3-Year Warranty from date of manufacture, subject to terms.
- Verify voltage, purge trapped air, inspect the bronze impeller and seal, confirm flange alignment, and check flow direction during commissioning.

Flush system debris, monitor the cast iron body for leakage, and inspect the impeller and flange during scheduled service. Purchase the Bell & Gossett 172701LF Series 60 601S commercial hydronic circulator from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
