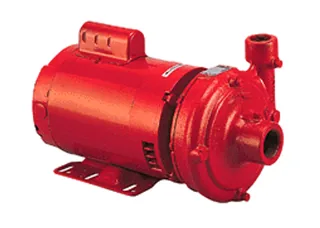

Bell & Gossett 168036 Series 1535 – 358S – 1-1/2HP Pump

High-demand hydronics use Bell & Gossett 168036 Series 1535-358S for primary HVAC circulation and commercial heating loops. Its 1-1/2 HP single-phase motor accepts 115 or 208 to 230 V, while the NEMA 56J frame, renewable stainless steel sleeve, and 175 PSI working pressure support demanding service. Confirm the carbon, ceramic, and Buna-N seal, system curve, and connection arrangement before startup.

The Series 1535-358S uses a NEMA 56J motor frame with stainless steel shaft protection and multi-material sealing. Its single-phase electrical configuration supports compatible commercial systems, while verified data does not include GPM, maximum head, amp draw, RPM, impeller material, connection size, operating temperature, dimensions, weight, thermal protection, or self-priming capability. Match the pump to the primary HVAC duty point before installation.

Key Features of Bell & Gossett 168036 Series 1535-358S

- 1-1/2 HP motor supports high-demand hydronics and primary HVAC circulation.
- 115 or 208 to 230 V single-phase operation suits compatible heating systems.
- NEMA 56J frame supports the specified Series 1535 motor configuration.
- Carbon, ceramic, and Buna-N seal materials support fluid containment.
- 175 PSI working pressure supports compatible commercial hydronic system design.
- Renewable stainless steel sleeve helps protect the pump shaft interface.
- Series 1535 construction suits primary HVAC and commercial heating applications.
- Flow, head, amperage, RPM, impeller, connections, temperature, dimensions, weight, protection, and warranty require confirmation.

Why Choose Bell & Gossett 168036 Series 1535-358S

This Bell & Gossett primary HVAC pump combines shaft-sleeve protection with flexible single-phase voltage and pressure-rated construction.

- Build: Cast iron, stainless steel shaft protection, NEMA 56J framing, and multi-material sealing support commercial service.
- Value: Flexible voltage and renewable sleeve design can simplify replacement planning and shaft maintenance.
- Audience: Commercial HVAC contractors, boiler technicians, hydronic engineers, facility managers, and maintenance teams can specify this model.

Applications & Use Cases

Use the Bell & Gossett 168036 Series 1535-358S for primary HVAC circulation, high-demand hydronics, commercial heating loops, and compatible boiler systems. Physical dimensions, unit weight, and connection reach were not supplied, so verify flange spacing, valve clearance, motor access, wiring position, lifting room, and service support before installation.

Warranty & Support

- Warranty: Bell & Gossett general product terms provide one year from installation or 18 months from product date code, whichever occurs first.
- Verify voltage, purge trapped air, inspect the sleeve and seal, confirm flange alignment, and check pressure during commissioning.

Flush system debris, monitor the pump body for leakage, and inspect the stainless sleeve and seal during scheduled service. Purchase the Bell & Gossett 168036 Series 1535-358S primary HVAC pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
