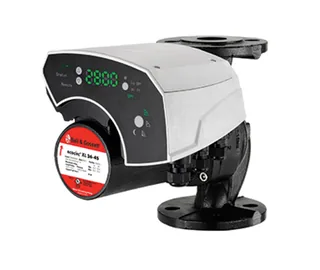

Bell & Gossett 104462LF Ecocirc XL N 40-200 Stainless Steel Circulator

High-volume potable loops use Bell & Gossett 104462LF Ecocirc XL N 40-200 for secondary domestic hot-water circulation and commercial water distribution. This 1 HP single-phase circulator operates on 208 to 230 V, delivers up to 200 GPM against 40 feet of head, and uses a lead-free stainless steel body. Confirm the 2-inch four-bolt flange, NSF/ANSI certifications, system pressure, and operating curve before startup.

The Ecocirc XL N 40-200 combines stainless steel construction with a 2-inch four-bolt booster flange for large potable-water loops. Its 208 to 230 V single-phase motor supports compatible commercial panels, while the 200 GPM and 40-foot performance limits guide system matching. Verified data does not include amp draw, RPM, impeller material, seal type, operating temperature, dimensions, weight, thermal protection, dry-run protection, or self-priming capability, so confirm the final product documentation.

Key Features of Bell & Gossett 104462LF Ecocirc XL N 40-200

- 1 HP motor supports high-volume potable-water and secondary domestic hot-water circulation.
- 208 to 230 V single-phase operation suits compatible commercial electrical systems.
- 200 GPM maximum flow supports large-building water distribution requirements.
- 40-foot maximum head suits compatible secondary domestic-water circulation loops.
- Lead-free stainless steel body supports potable-water and corrosion-conscious installations.
- 2-inch four-bolt booster flange accommodates larger commercial water-system piping.
- NSF/ANSI 61 and 372 certification supports specified potable-water applications.
- Amperage, RPM, seal, temperature, dimensions, weight, protection, and warranty require confirmation.

Why Choose Bell & Gossett 104462LF Ecocirc XL N 40-200

This Bell & Gossett potable-water circulator combines stainless steel construction, large flow capacity, and a four-bolt flange.

- Build: Lead-free stainless steel and four-bolt flange construction support compatible large-building potable-water systems.
- Value: High-volume circulation can reduce domestic-water wait times and support balanced distribution when the system curve matches.
- Audience: Commercial plumbing contractors, hotel engineers, hospital facility teams, campus operators, and domestic-water installers can specify this model.

Applications & Use Cases

Install the Bell & Gossett 104462LF Ecocirc XL N 40-200 in high-volume potable-water loops, secondary DHW systems, hotels, hospitals, and commercial buildings. Physical dimensions, unit weight, and flange reach were not supplied, so verify 2-inch flange spacing, valve clearance, wiring access, lifting room, and service space before installation.

Warranty & Support

- Warranty: Bell & Gossett general product terms provide one year from installation or 18 months from product date code, whichever occurs first.
- Verify potable-water compliance, purge air, inspect flange gaskets, confirm system pressure, and check seal condition during commissioning.

Flush strainers, monitor the stainless steel body for leakage, and review flow and operating pressure during scheduled maintenance. Purchase the Bell & Gossett 104462LF Ecocirc XL N 40-200 potable-water circulator from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
