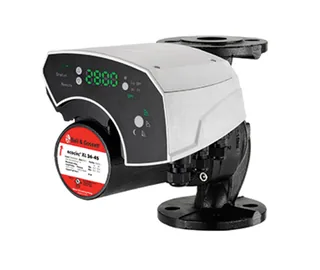

Bell & Gossett 104453LF Ecocirc XL N 15-75 Stainless Steel Circulating Pump

Recirculate potable water with Bell & Gossett 104453LF ecocirc XL N 15-75, a stainless-steel ECM pump for lead-free domestic hot-water systems. Its 115 V single-phase motor, 75 GPM maximum flow, and 15 feet maximum head suit higher-volume potable-water loops that do not require high discharge pressure. Confirm the connection details, control settings, and water temperature before installation.

The electronically commutated motor operates within the XL N stainless-steel assembly and supports the listed NSF/ANSI 61 and 372 certifications. Manufacturer data identifies a 1/6 HP nominal motor and a 30 W to 150 W rated power range for this model. Verify amp draw, dimensions, weight, port reach, and system curve before startup.

Key Features & Benefits

- 1/6 HP ECM Motor: Supports high-flow potable-water recirculation with electronically controlled output.
- 115 V Single-Phase: Fits compatible commercial and institutional service panels.
- 75 GPM Maximum Flow: Handles large domestic hot-water return requirements.
- 15 Feet Maximum Head: Provides a lower-head reference for high-volume potable-water loops.
- Stainless-Steel Body: Provides the specified casing material for open-loop DHW service.
- NSF/ANSI 61 and 372: Support the listed potable-water compliance requirements.
- 30 W to 150 W Power Range: Helps review electrical demand across operating conditions.
- ecocirc XL N Design: Identifies the stainless-steel potable-water version of the pump family.
- ECM Operation: Supports electronically controlled circulation for changing DHW demand.

Why Choose Bell & Gossett 104453LF ecocirc XL N 15-75

The ecocirc XL N 15-75 combines stainless-steel construction, potable-water certifications, and high flow for commercial DHW loops with lower head requirements.

- Build: Stainless-steel body, ECM motor, and certified potable-water construction define the supplied pump.
- Value: The power range and electronic operation can help limit unnecessary energy use during lower demand.
- Audience: Suited to plumbing contractors, hotel engineers, hospital maintenance teams, and institutional DHW operators.

Applications & Use Cases

Use Bell & Gossett 104453LF ecocirc XL N 15-75 for high-flow potable-water recirculation, lead-free DHW systems, and compatible 115 V installations. The supplied data does not provide overall dimensions, unit weight, connection size, or port-to-port reach, so verify flange layout, valve clearance, control access, and service space before installation.

Warranty & Support

- Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with the seller.
- Match SKU 104453LF, ecocirc XL N 15-75 model, 115 V supply, flow, head, certifications, and control requirements before ordering.

Flush the potable-water loop, purge air, verify the 115 V supply, configure the ECM controls, and monitor flow, temperature, vibration, leakage, and power draw during commissioning. Purchase the Bell & Gossett 104453LF ecocirc XL N 15-75 stainless-steel ECM circulator through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
