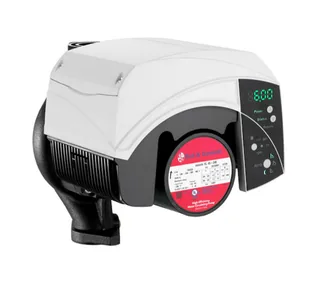

Bell & Gossett 104323 3PH Ecocirc XL 27-320 Iron Body Circulator

Handle large institutional HVAC circulation with Bell & Gossett 104323 ecocirc XL 27-320, a three-phase ECM circulator rated for up to 320 GPM and 27 feet of head. Its cast-iron body suits closed-loop heating and cooling systems, while proportional-pressure, constant-pressure, and fixed-speed modes let commissioning teams match output to the building loop. Confirm the motor voltage, control wiring, and operating point before installation.

The 2 HP electronically commutated motor operates on 208–230/400–460 V three-phase power and uses the XL 27-320 performance range for high-volume circulation. The listed control modes support different system demands, but amp draw, connection size, dimensions, weight, and communication details were not fully supplied. Verify the current submittal, phase rotation, pump orientation, and building-automation requirements before startup.

Key Features & Benefits

- 2 HP Three-Phase ECM: Supports large institutional HVAC and industrial process-circulation duties.
- 320 GPM Maximum Flow: Handles high-volume loop circulation within the stated performance range.
- 27 Feet Maximum Head: Provides a clear selection reference for lower-head, larger-flow systems.
- Multiple Control Modes: Offers proportional pressure, constant pressure, and fixed-speed operation for system balancing.
- 208–230/400–460 V: Fits compatible three-phase electrical systems with flexible voltage selection.
- Cast-Iron Body: Suits closed-loop hydronic heating and cooling applications.
- ECM Motor Design: Adjusts electronically for changing circulation demand and control requirements.
- Large-Loop Configuration: Gives contractors a clear product reference for institutional and process systems.

Why Choose Bell & Gossett 104323 ecocirc XL 27-320

The ecocirc XL 27-320 is designed for high-volume circulation where a 320 GPM capacity, three-phase ECM motor, and selectable control modes are needed in one pump platform.

- Build: Cast iron, ECM technology, and large-loop pump construction provide defined equipment details for institutional service.
- Value: Adjustable pressure and speed modes can help commissioning teams match pump output to changing system demand.
- Audience: Suited to hospital engineers, university facilities, industrial HVAC contractors, and process-circulation maintenance teams.

Applications & Use Cases

Use Bell & Gossett 104323 ecocirc XL 27-320 for large institutional HVAC, industrial process circulation, closed-loop heating, and cooling systems requiring high flow at lower head. The supplied data does not state dimensions, weight, connection size, or port-to-port reach, so verify flange layout, lifting access, control wiring, service clearance, and pipe support before installation.

Warranty & Support

- Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with the seller.
- Match SKU 104323, ecocirc XL 27-320 model, motor voltage, phase, and control requirements before ordering.

Flush the loop, purge air, verify phase rotation, configure the selected control mode, and confirm the three-phase voltage before startup. Check communication wiring where used, then monitor flow, head, power, vibration, and temperature during commissioning. Purchase the Bell & Gossett 104323 ecocirc XL 27-320 three-phase ECM circulator through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
