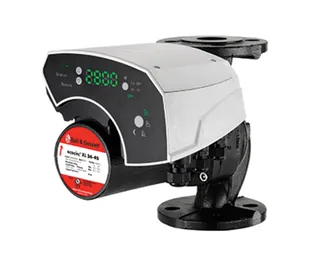

Bell & Gossett 104318 Ecocirc XL 40-275 Iron Body Circulator

Move large institutional HVAC loops with Bell & Gossett 104318 ecocirc XL 40-275, a cast-iron ECM circulator for 208–230 V single-phase service. The pump is listed at up to 275 GPM and 40 feet of head, making it suitable for primary pumping in large institutions and cooling-tower loops when the system curve supports those conditions. Confirm the control mode, piping arrangement, and available clearance before installation.

The ecocirc XL 40-275 uses an ECM smart-circulator design with horizontal or vertical in-line mounting and integrated over-temperature, overload, and dry-run protection. Manufacturer reference data identifies a nominal 2 HP motor and a 208–230 V single-phase configuration for this model. The supplied information does not state exact dimensions, weight, connection size, or port reach, so verify the current submittal before ordering.

Key Features & Benefits

- 2 HP ECM Motor: Supports large institutional HVAC and cooling-tower circulation duties.
- 275 GPM Maximum Flow: Handles high-volume loop circulation within the stated performance range.
- 40 Feet Maximum Head: Provides a clear selection reference for higher-resistance commercial systems.
- 208–230 V Single-Phase: Fits compatible commercial power systems without requiring three-phase service.
- Multiple Mounting Positions: Allows horizontal or vertical pipe mounting when the installation layout permits.
- Integrated Dry-Run Protection: Helps protect the circulator during loss-of-fluid conditions.
- Overload Protection: Helps protect the motor during abnormal operating conditions.
- Over-Temperature Protection: Adds a defined protective function for demanding circulation service.

Why Choose Bell & Gossett 104318 ecocirc XL 40-275

The ecocirc XL 40-275 is built for high-volume commercial circulation where ECM control, large flow capacity, and integrated motor protection are more important than a small pump-room installation.

- Build: Cast iron, ECM motor technology, in-line mounting, and integrated protection functions define the supplied configuration.
- Value: Electronic control and protective functions can help reduce manual intervention during changing system conditions.
- Audience: Suited to hospital engineers, university facilities, cooling-tower technicians, and institutional HVAC contractors.

Applications & Use Cases

Use Bell & Gossett 104318 ecocirc XL 40-275 for primary pumping in large institutions, cooling-tower loops, and compatible commercial heating or cooling systems. The supplied data does not list overall dimensions, unit weight, connection size, or port-to-port reach, so verify pipe support, flange layout, lifting access, control-panel clearance, and mounting orientation before installation.

Warranty & Support

- Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with the seller.
- Match SKU 104318, ecocirc XL 40-275 model, 2 HP rating, 208–230 V supply, and mounting requirements before ordering.

Flush the loop, purge trapped air, verify the 208–230 V supply, and configure the selected control mode before startup. Test the dry-run, overload, and temperature-protection functions according to the applicable instructions, then monitor flow, head, vibration, and power draw. Purchase the Bell & Gossett 104318 ecocirc XL 40-275 ECM hydronic circulator through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
