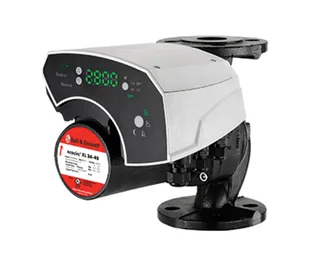

Bell & Gossett 104301 Ecocirc XL 36-45 Iron Body Circulator

Commercial hydronic HVAC uses Bell & Gossett 104301 Ecocirc XL 36-45 for variable-speed heating and cooling circulation. Its ECM motor delivers up to 45 GPM against 36 feet of head, while proportional-pressure, constant-pressure, and fixed-speed modes adapt pump output to changing loop demand. Confirm the 115 V single-phase supply, IP44 protection, BMS readiness, and system curve before startup.

The Ecocirc XL 36-45 uses a cast iron body, push-button user interface, and high-efficiency ECM motor. Its 14°F to 230°F operating range supports compatible hydronic systems, while verified data does not include amp draw, RPM, impeller material, seal type, connection size, dimensions, weight, thermal protection, or self-priming capability. Match the circulator to the commercial heating or cooling duty point before installation.

Key Features of Bell & Gossett 104301 Ecocirc XL 36-45

- ECM motor supports variable-speed commercial hydronic heating and cooling circulation.
- 45 GPM maximum flow supports compatible commercial HVAC loop requirements.
- 36-foot maximum head suits higher-resistance hydronic circulation systems.
- Proportional-pressure control adjusts output as system resistance changes.
- Constant-pressure control maintains selected pressure across changing system demand.
- Fixed-speed control provides stable circulation for compatible HVAC systems.
- Push-button user interface supports local pump setup and adjustment.
- Modbus RTU and BACnet MS/TP readiness supports building-management integration.
- 14°F to 230°F range and IP44 protection define listed operating conditions.

Why Choose Bell & Gossett 104301 Ecocirc XL 36-45

This Bell & Gossett ECM circulator combines variable-speed control with local interface operation for commercial HVAC loops.

- Build: Cast iron construction, ECM technology, and IP44 protection support compatible commercial hydronic applications.
- Value: Multiple control modes can reduce unnecessary pump output and simplify system balancing.
- Audience: Commercial HVAC contractors, building automation integrators, facility engineers, boiler technicians, and hydronic designers can specify this model.

Applications & Use Cases

Use the Bell & Gossett 104301 Ecocirc XL 36-45 for commercial hydronic HVAC, variable-speed heating, cooling loops, and BMS-connected circulation. Physical dimensions, unit weight, and connection reach were not supplied, so verify pipe spacing, valve clearance, interface access, wiring route, lifting room, and IP44 installation conditions before purchase.

Warranty & Support

- Warranty: Bell & Gossett general product terms provide one year from installation or 18 months from product date code, whichever occurs first.
- Verify control settings, purge trapped air, inspect the casing for leakage, confirm IP44 conditions, and test communication connections during commissioning.

Flush strainers, review operating modes, inspect the push-button interface, and monitor the cast iron body during scheduled service. Purchase the Bell & Gossett 104301 Ecocirc XL 36-45 ECM circulator from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
