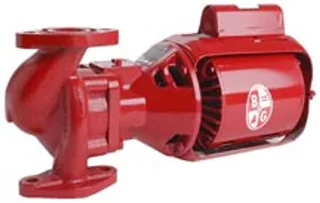

Bell & Gossett 102232 Model 2 BI Booster Pump 1/6 HP

Commercial boiler loops rely on Bell & Gossett 102232 Model 2 BI for secondary circulation and hydronic booster service. Its 1/6 HP pump uses a cast iron body, bronze impeller, ceramic-carbon mechanical seal, oil-lubricated sleeve bearing, and 1725 RPM operating speed. Fill the loop, purge trapped air, and verify bearing lubrication before startup to protect the rotating assembly.

The Bell & Gossett Series 2 Model 2 BI uses bronze-fitted hydraulics inside a cast iron pump body. Its oil-lubricated sleeve bearing supports the shaft, while the ceramic-carbon mechanical seal helps contain circulating fluid. Verified data does not include voltage, phase, amp draw, GPM, maximum head, connection size, operating temperature, dimensions, weight, thermal protection, or self-priming capability, so confirm the complete boiler-loop specification before installation.

Key Features of Bell & Gossett 102232 Model 2 BI

- 1/6 HP motor supports commercial boiler boosting and secondary hydronic circulation.
- 1725 RPM operating speed suits the specified Model 2 BI configuration.
- Cast iron body provides a rigid housing for commercial boiler-room installation.
- Bronze impeller supports compatible hydronic fluid circulation and component durability.
- Ceramic-carbon mechanical seal helps contain fluid within approved operating conditions.
- Oil-lubricated sleeve bearing supports shaft rotation under circulation loads.
- Series 2 construction suits commercial boiler boosters and secondary heating loops.
- Voltage, phase, amperage, flow, head, connections, temperature, dimensions, weight, and warranty require confirmation.

Why Choose Bell & Gossett 102232 Model 2 BI

This Bell & Gossett boiler booster combines bronze hydraulic components with an oil-lubricated sleeve bearing for serviceable hydronic circulation.

- Build: Cast iron, bronze, ceramic, and carbon components support compatible commercial boiler-loop applications.
- Value: Serviceable bearing lubrication and mechanical sealing can help reduce premature wear when maintenance intervals are followed.
- Audience: Boiler contractors, hydronic service technicians, commercial HVAC teams, facility engineers, and mechanical-room maintenance crews can specify this model.

Applications & Use Cases

Use the Bell & Gossett 102232 Model 2 BI for commercial boiler boosting, secondary hydronic loops, heating distribution, and fixed mechanical-room circulation. Physical dimensions, unit weight, and connection reach were not supplied, so verify pipe spacing, valve access, lubrication clearance, motor service room, and lifting requirements before installation.

Warranty & Support

- Warranty: Bell & Gossett general product terms provide one year from installation or 18 months from product date code, whichever occurs first.
- Check oil level, purge trapped air, inspect the mechanical seal, verify rotation, and confirm system pressure during commissioning.

Clean strainers, review bearing lubrication, monitor the cast iron body for leakage, and inspect the coupler during scheduled service. Purchase the Bell & Gossett 102232 Model 2 BI commercial boiler booster pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
