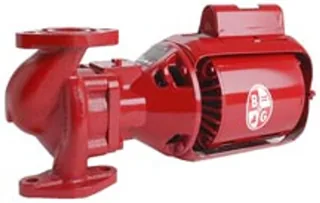

Bell & Gossett 102230 HV BI Bronze Fitted Pump

High-velocity residential heating and zoned hydronic systems can use the Bell & Gossett 102230 Series HV BI with 1/6 HP, 115 V single-phase power, cast-iron construction, bronze impeller, bronze sleeve, and three-piece modular assembly.

The oil-lubricated SAE 20 arrangement creates a specific maintenance requirement for this circulator. Its listed application covers large zoned hydronics, while the supplied record does not provide exact flow, head, pressure, temperature, pump curve, or efficiency data for final system selection.

Technical Details

- The 1/6 HP motor establishes the listed power class for residential hydronic planning.
- 115 V single-phase operation supports electrical compatibility checks before installation.
- Cast-iron construction identifies the documented body material for hydronic service.
- A bronze impeller provides the listed rotating-component material for comparison.
- The bronze sleeve identifies the documented shaft-protection arrangement.
- Three-piece modular construction supports component service and replacement planning.
- SAE 20 oil lubrication establishes a recurring maintenance requirement.

Performance and Application

High-velocity residential heating and large zoned hydronic systems are the listed applications for this Series HV circulator. Exact flow, head, NPSH, pressure, temperature, efficiency, and curve values are not supplied, so the 1/6 HP motor cannot establish hydraulic capacity or a confirmed operating point.

Installation Requirements

Verify 115 V single-phase power, two-bolt flange fitment, installation orientation, flow direction, rotation, SAE 20 oil access, bronze-sleeve condition, fluid temperature, and service clearance before startup. The three-piece assembly should remain accessible for inspection and lubrication within the installed piping layout.

Warranty and Maintenance

Bell & Gossett provides an 18-Month Limited Warranty from shipment or a 1-Year Limited Warranty from installation, whichever occurs first, covering material and workmanship defects. Proper installation and intended use are required, while misuse, alteration, negligence, and contrary operation are excluded. SAE 20 lubrication remains a required service task. Mulmotor offers order support.
