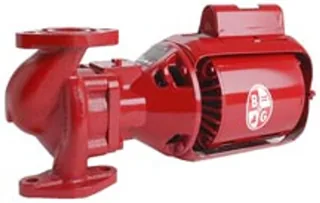

Bell & Gossett 102210 Series HV NFI Circulator Pump

Large zoned hydronic systems can consider the Bell & Gossett 102210 Series HV NFI with 1/6 HP power, cast-iron construction, non-ferrous impeller, three-piece modular design, and standard two-bolt flange connection.

The oil-lubricated SAE 20 arrangement identifies a specific service requirement for this high-velocity circulator. Its listed application covers residential heating and large zoned hydronics, while the supplied record does not provide exact voltage, flow, head, pressure, temperature, pump curve, or efficiency data.

Technical Details

- The 1/6 HP motor establishes the listed power class for hydronic electrical planning.
- Cast-iron construction identifies the documented body material for residential heating applications.
- The NFI designation identifies a non-ferrous impeller configuration for component review.
- Three-piece modular construction supports replacement-part and service-assembly planning.
- A standard two-bolt flange connection requires compatible piping and flange dimensions.
- SAE 20 oil lubrication establishes a documented maintenance requirement for service planning.
- High-velocity residential heating and large zoned hydronics define the stated application context.

Performance and Application

High-velocity residential heating and large zoned hydronics are the listed applications for this Series HV circulator. Exact flow, head, NPSH, pressure, temperature, curve, and efficiency data are not supplied, so the model should be selected against actual system resistance and the required circulation rate.

Installation Requirements

Verify electrical supply, two-bolt flange fitment, installation orientation, flow direction, rotation, SAE 20 lubrication access, and available clearance before startup. The three-piece modular arrangement should remain accessible for inspection and component service within the installed hydronic piping layout.

Warranty and Maintenance

Bell & Gossett provides an 18-Month Limited Warranty from shipment or a 1-Year Limited Warranty from installation, whichever occurs first, covering defects in materials and workmanship. Proper installation and intended use are required, while misuse, alteration, negligence, and contrary operation are excluded. SAE 20 lubrication is a documented maintenance consideration. Mulmotor offers pre-purchase support.
