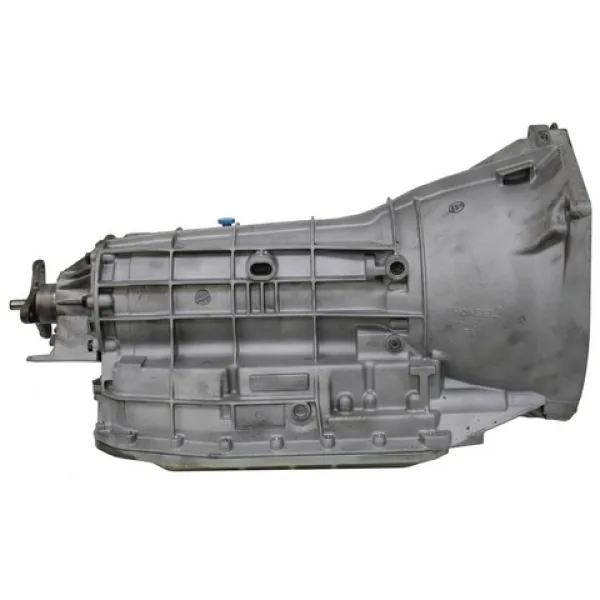

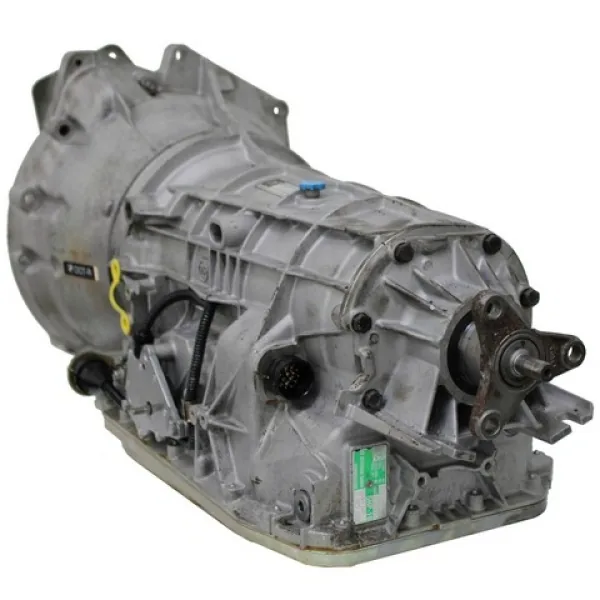

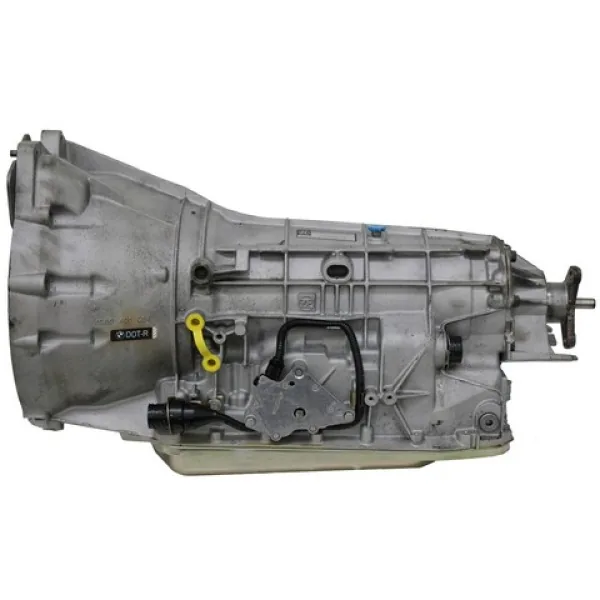

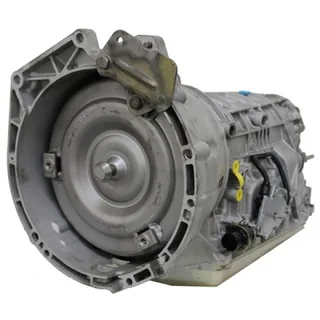

Audi A4 A6 Automatic Transmission 5-Speed 5HP19FL Tag 10699T Remanufactured

The Audi A4 A6 automatic transmission 5-speed 5HP19FL Tag 10699T remanufactured gearbox matches factory computer shift maps through verified internal gear ratios and precision-calibrated solenoids. Installing a transaxle with incorrect final drive ratios triggers immediate gear ratio mismatch trouble codes and forces the transmission control module into limp-home mode. This remanufactured unit features factory-correct Tag 10699T planetary gearsets, an updated torque converter with reinforced lockup seals, and a re-machined front oil pump.

Remanufacturing technicians machine the front pump housing to accept an oversized bronze bushing, preventing torque converter hub scoring and stopping front seal oil leaks. All five forward clutch packs receive new high-energy friction plates and precision-ground steel reaction plates to provide positive torque transfer under heavy acceleration. The valve body is overhauled with updated pressure regulator valves that eliminate line pressure spikes and prevent harsh gear shifts.

Engineering Updates on 5HP19FL Tag 10699T

- Tag 10699T Specific Final Drive Ratio: Planetary gearsets and differential ring gear match specific vehicle engine control software.
- Re-Machined Front Oil Pump Housing: New bronze stator bushing and Viton front pump seal stop transmission oil leaks.
- Upgraded Torque Converter Lockup Piston: Reinforced friction lining and high-temperature seal design prevent P0741 converter slippage.
- Sleeved Valve Body Regulator Bores: Precision sleeves eliminate hydraulic leaks to deliver smooth upshifts and downshifts.
- Reinforced F-Clutch Cylinder Drum: Heavy-duty replacement drum eliminates snap-ring groove fatigue under aggressive acceleration.
- Multi-Channel Dynamic Load Dyno Testing: Checks stall speed, line pressure rise, and gear ratio transitions across all five forward gears.

Differential Pinion Shimming & Noise Elimination

Engineered for European luxury sedans and wagons, this 5-speed automatic transmission delivers factory-quiet operation and smooth shifts.

- Precision differential shimming eliminates final drive gear whine, maintaining luxury cabin quietness at highway speeds.
- Oversized regulator valve installation eliminates line pressure spikes, protecting clutch drums and sealing rings from rupture.
- Pre-tested shift solenoids guarantee accurate gear transitions in automatic drive mode and manual Tiptronic control.

Drivetrain Matching & Tag Code Identification

Calibrated specifically for Audi models specifying tag code 10699T on the casing data plate, this transaxle integrates with factory front CV drive axles.

Commercial Warranty & Preventive Maintenance

- Commercial European service shops receive 3-Year or 100,000-mile parts warranty protection against internal component failure.

Flush the vehicle cooler lines with pressurized solvent, replace the transmission filter, and fill the transmission with approved synthetic fluid meeting VW G 052 162 specifications. Verify fluid level via the check plug while monitoring fluid temperature with a scan tool. Order the Audi A4 A6 automatic transmission 5-speed 5HP19FL Tag 10699T remanufactured gearbox from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
