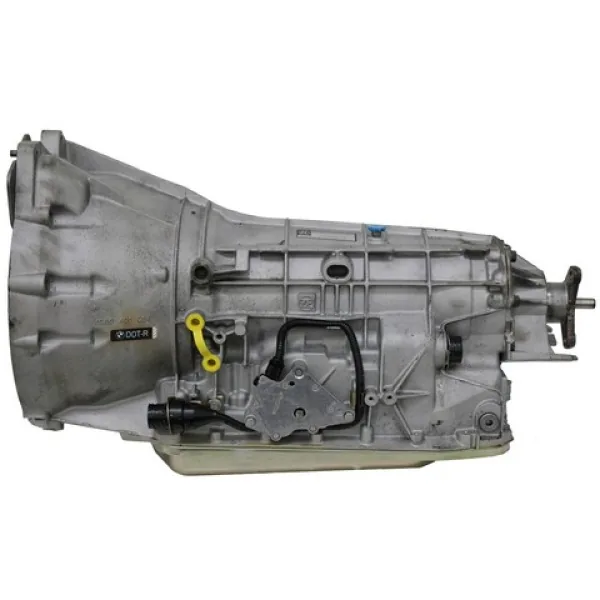

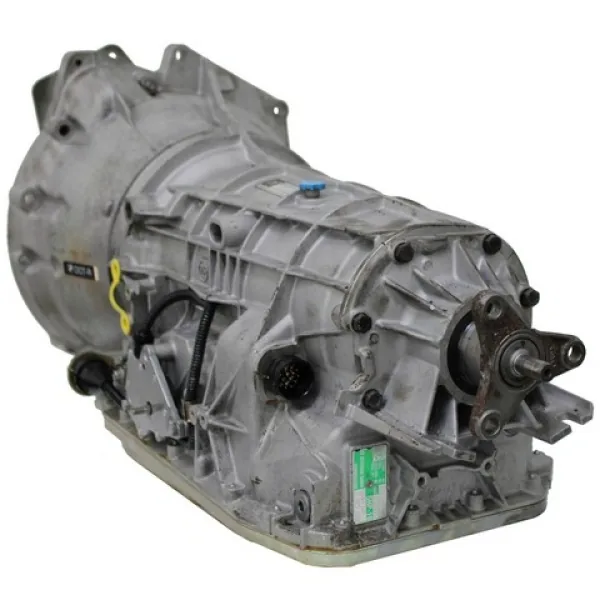

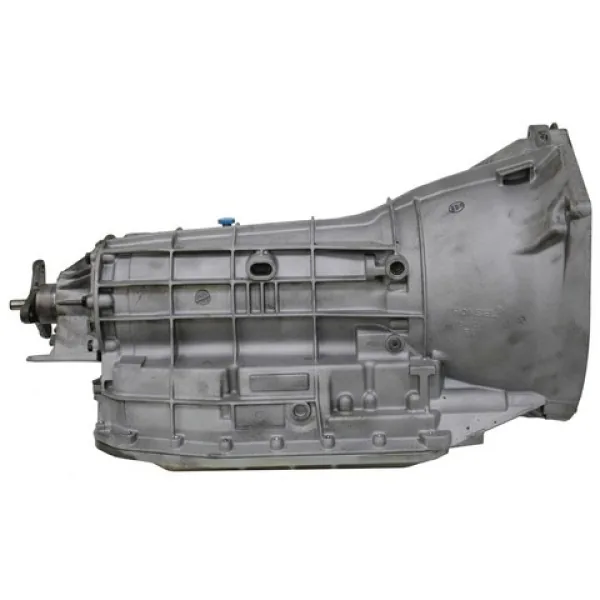

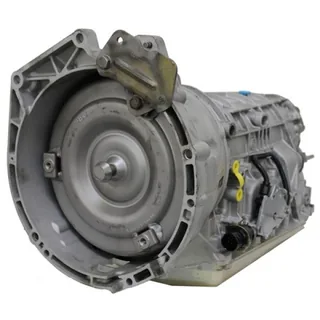

Audi A4 A6 Automatic Transmission 5-Speed 5HP19FL Tag 10687T Remanufactured

Eliminating torque converter slip codes on front-wheel-drive sedans, the Audi A4 A6 automatic transmission 5-speed 5HP19FL Tag 10687T remanufactured gearbox restores positive lockup clutch apply and steady cruising RPM. Factory ZF torque converters develop torn internal piston seals over time, causing the converter clutch to slip and triggering diagnostic trouble code P0741. This remanufactured transaxle incorporates a rebuilt torque converter with upgraded high-temperature friction material, a reinforced F-clutch drum, and re-machined valve body regulator bores.

Technicians replace all friction discs with high-energy friction plates that grip without glazing under acceleration. The front transmission oil pump receives a new bronze stator support bushing, preventing converter hub galling and stopping front seal oil leaks. Every unit undergoes hot fluid dyno testing through all five forward gear ranges and reverse, verifying that line pressure rise and shift solenoid timing match the exact programming requirements of Tag 10687T.

Key Engineering Updates on 5HP19FL Tag 10687T

- Tag 10687T Ratio Calibration: Verified internal planetary ratios and final drive gear teeth match vehicle transmission control unit coding.
- Reinforced Torque Converter Lockup Seal: Upgraded seal material prevents pressure blowout, eliminating P0741 converter clutch slip codes.
- Oversized Pressure Regulator Valve: Machined aluminum valve body bore eliminates fluid pressure drops to stop harsh 2-1 gear downshift clunks.
- Reinforced F-Clutch Cylinder Drum: Heavy-duty replacement drum eliminates snap-ring groove fatigue to protect reverse gear engagement.
- Complete Viton Sealing Kit: High-temperature D-rings and lip seals prevent internal hydraulic pressure loss between clutch circuits.
- Hot-Fluid Dyno Load Testing: Tests line pressure rise, gear transitions, and converter lockup under simulated vehicle road loads.

Pressure Regulator Bore Sleeving & Torque Converter Rebuild

Rebuilt to original ZF engineering standards, this 5-speed transaxle restores clean gear changes to German passenger sedans and wagons.

- Machined pressure regulator bores eliminate line pressure spikes, protecting internal clutch drums from premature stress cracking.
- The remanufactured torque converter includes new internal thrust bearings and furnace-brazed turbine fins to stop converter shudder.
- Pre-tested shift and pressure solenoids ensure consistent gear transitions in automatic drive mode and manual Tiptronic control.

Transmission Tag Identification & Final Drive Matching

Engineered for Audi A4 and A6 models specifying tag code 10687T, this front-wheel-drive unit requires cross-referencing the green or blue metal data plate on the transmission oil pan before installation.

Commercial Warranty & Installation Guidelines

- Professional service centers receive 3-Year or 100,000-mile parts warranty coverage against internal mechanical defects.
- Core credit requires return of an intact, drained 5HP19FL core with matching tag 10687T inside the original shipping crate.

Flush the radiator oil cooler with pressurized solvent to remove trapped metal particles, replace the pan filter, and fill the transmission with approved synthetic fluid meeting VW G 052 162 standards. Check fluid level through the pan check plug between 35 and 45 degrees Celsius. Order the Audi A4 A6 automatic transmission 5-speed 5HP19FL Tag 10687T remanufactured gearbox from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
