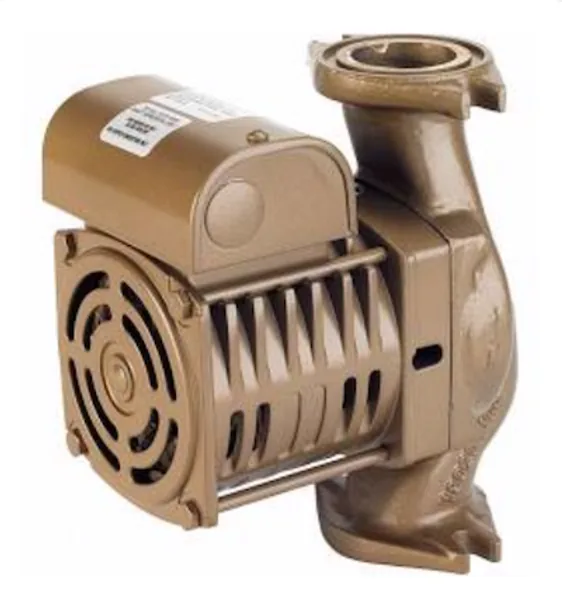

Support high-volume potable-water boosting with Armstrong 182212-654 E24.2B, a lead-free bronze ARMflo circulator for domestic hot-water systems. Its 120 V single-phase motor, 90 GPM maximum flow, and 43 feet maximum head suit commercial loops where both volume and resistance must be considered. The in-line mounting arrangement can fit vertical or horizontal layouts when the installation orientation and piping support are correct.

The dry-rotor maintenance-free motor uses a lead-free bronze body and operates within the supplied 120 V configuration. AB1953 and NSF-372 certification support the listed potable-water application, while the supplied data does not state amp draw, exact dimensions, weight, seal material, or flange size. Verify the current submittal, system curve, water temperature, and service clearance before startup.

Key Features & Benefits

- 120 V Single-Phase: Fits compatible commercial service panels for straightforward installation.
- 90 GPM Maximum Flow: Supports high-volume potable-water and domestic hot-water recirculation.
- 43 Feet Maximum Head: Provides a selection reference for higher-resistance DHW systems.
- Lead-Free Bronze Body: Provides the specified wetted material for potable-water service.
- AB1953 and NSF-372: Supports the listed low-lead compliance requirements.
- Dry-Rotor Motor: Provides the specified motor arrangement for commercial circulation.
- Maintenance-Free Design: Reduces routine lubrication work during normal operation.
- Vertical or Horizontal Mounting: Allows flexible placement when the approved orientation is followed.

Why Choose Armstrong 182212-654 E24.2B

The E24.2B combines lead-free bronze construction with 90 GPM flow and 43 feet of head for commercial potable-water systems that require more circulation capacity.

- Build: Bronze body, dry-rotor motor, maintenance-free construction, and flanged in-line layout define the supplied pump.
- Value: The listed flow, head, and potable-water certifications help contractors compare suitable open-loop replacements.
- Audience: Suited to plumbing contractors, hotel engineers, hospital maintenance teams, and commercial DHW installers.

Applications & Use Cases

Use Armstrong 182212-654 E24.2B for potable-water boosting, high-volume hot-water recirculation, and compatible commercial DHW loops. The supplied data identifies 90 GPM maximum flow and 43 feet maximum head but does not provide dimensions, weight, port reach, or flange size. Verify mounting orientation, pipe support, valve clearance, water temperature, and service access before installation.

Warranty & Support

- Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with Armstrong or the seller.
- Match SKU 182212-654, E24.2B model, 120 V supply, bronze body, flow, head, certification, and flange details before ordering.

Flush the potable-water line, purge air, verify the 120 V supply, inspect the seal area, and confirm the selected mounting orientation before startup. Monitor flow, temperature, vibration, leakage, and pressure during commissioning. Purchase the Armstrong 182212-654 E24.2B ARMflo lead-free bronze potable-water circulator through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
