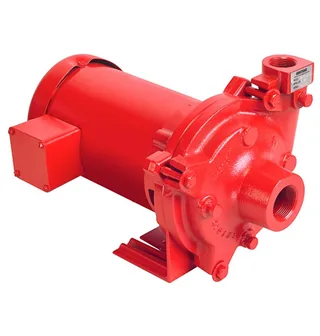

Armstrong 410135-302 Circulating Pump 709T

High-demand industrial heating uses Armstrong 410135-302 709T for commercial boiler plants and three-phase circulation. Its 3/4 HP motor accepts 208 to 230 or 460 V, while the heavy-duty three-piece body, curve-specific impeller, and multi-material shaft sleeve support demanding service. Confirm the Buna-N, ceramic, and carbon seal materials, phase rotation, system curve, and motor protection before startup.

The Armstrong Series 700 709T uses a heavy-duty three-piece design with an impeller trimmed for a specific performance curve. Its stainless steel or bronze shaft sleeve supports shaft protection, while verified data does not include GPM, maximum head, amp draw, RPM, connection size, operating temperature, dimensions, weight, thermal protection, or self-priming capability. Match the pump to the boiler-plant duty point before installation.

Key Features of Armstrong 410135-302 709T

- 3/4 HP motor supports high-demand industrial heating and boiler plants.
- 208 to 230 or 460 V three-phase operation suits commercial power systems.
- Heavy-duty three-piece design supports industrial circulation and service access.
- Curve-specific impeller trimming aligns hydraulic output with selected performance requirements.
- Buna-N, ceramic, and carbon seal materials support fluid containment.
- Stainless steel or bronze sleeve options protect the rotating shaft interface.
- Series 700 configuration suits commercial boiler and industrial heating applications.
- Flow, head, amperage, RPM, connections, temperature, dimensions, weight, protection, and warranty require confirmation.

Why Choose Armstrong 410135-302 709T

This Armstrong industrial circulation pump combines curve-specific hydraulics with heavy-duty three-piece construction for commercial boiler service.

- Build: Heavy-duty construction, protective sleeve options, and multi-material sealing support industrial heating systems.
- Value: Specific impeller trimming can improve duty-point matching and reduce throttling or overload concerns.
- Audience: Boiler-plant contractors, industrial HVAC engineers, facility managers, hydronic technicians, and maintenance teams can specify this model.

Applications & Use Cases

Use the Armstrong 410135-302 709T for industrial heating, commercial boiler plants, high-demand hydronics, and compatible three-phase circulation. Physical dimensions, unit weight, and connection reach were not supplied, so verify piping space, valve clearance, impeller access, motor wiring, lifting room, and structural support before installation.

Warranty & Support

- Warranty: Armstrong USA general terms provide 12 months from installation, not exceeding 18 months from shipment, for applicable non-E.2 products.
- Confirm phase rotation, purge air, inspect seals, verify impeller trimming, and check shaft-sleeve condition during commissioning.

Flush system debris, monitor the pump body for leakage, and inspect the three-piece assembly during scheduled service. Purchase the Armstrong 410135-302 709T industrial boiler circulation pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
