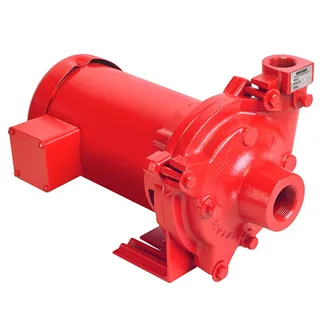

Armstrong 410133-343 Circulating Pump 704T Bronze Impeller

Large-scale heating systems need Armstrong 410133-343 704T for three-phase commercial HVAC and secondary-loop circulation. Its 1/6 HP cast iron pump uses a bronze non-ferrous impeller, modular three-piece shaft design, bronze sleeve, and oil-lubricated sleeve bearings. Confirm the 208 to 230 or 460 V supply, 125 PSI pressure limit, bearing lubrication, and system curve before startup.

The Armstrong Series 700 704T uses a cast iron body with bronze-fitted hydraulic components and a three-piece modular shaft. Its oil-lubricated sleeve bearings require the specified service practice, while the three-phase motor accepts 208 to 230 or 460 V configuration. Verified data does not include GPM, maximum head, amp draw, RPM, seal material, operating temperature, dimensions, weight, thermal protection, or self-priming capability, so confirm the complete pump selection.

Key Features of Armstrong 410133-343 704T

- 1/6 HP motor supports three-phase commercial HVAC and secondary heating loops.
- 208 to 230 or 460 V operation suits compatible commercial electrical systems.
- Cast iron body provides a rigid housing for hydronic circulation.
- Bronze non-ferrous impeller supports compatible commercial heating and cooling fluids.
- Three-piece modular shaft design supports serviceable pump assembly construction.
- Bronze sleeve helps protect the shaft interface during pump operation.
- Oil-lubricated sleeve bearings require scheduled lubrication for continued service.
- 125 PSI maximum pressure supports compatible commercial hydronic system design.
- Flow, head, amperage, RPM, seal, temperature, dimensions, weight, protection, and warranty require confirmation.

Why Choose Armstrong 410133-343 704T

This Armstrong bronze-fitted circulator combines three-phase electrical flexibility with serviceable shaft and bearing construction for commercial HVAC loops.

- Build: Cast iron, bronze, modular shaft, and oil-lubricated sleeve components support compatible commercial circulation systems.
- Value: Serviceable bearing construction can extend maintenance access and reduce replacement disruption when lubrication schedules are followed.
- Audience: Commercial HVAC contractors, boiler technicians, facility engineers, hydronic installers, and industrial maintenance teams can specify this model.

Applications & Use Cases

Use the Armstrong 410133-343 704T for commercial HVAC, secondary heating loops, hydronic circulation, and three-phase mechanical-room installations. Physical dimensions, unit weight, and connection reach were not supplied, so verify piping space, valve clearance, bearing access, motor wiring, lifting room, and structural support before installation.

Warranty & Support

- Warranty: Armstrong USA general terms provide 12 months from installation, not exceeding 18 months from shipment, for applicable non-E.2 products.
- Confirm motor voltage, phase rotation, bearing lubrication, shaft alignment, pressure conditions, and seal performance during commissioning.

Lubricate the sleeve bearings according to approved instructions, clean strainers, and inspect the bronze sleeve and impeller during scheduled service. Purchase the Armstrong 410133-343 704T bronze-fitted HVAC circulating pump from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
