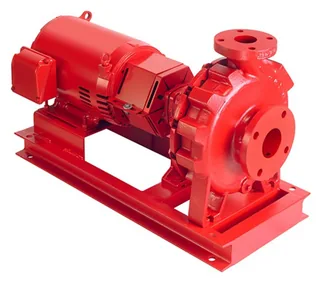

Armstrong 4030 Series Horizontal Base Mounted Pump 20 HP 4 x 3 x 11.5

District heating and cooling plants can evaluate the Armstrong Series 4030 4 x 3 x 11.5 horizontal base-mounted pump with 20 HP three-phase power, a flexible spacer coupler, regreasable ball bearings, ductile-iron volute, and bronze-fitted construction.

The end-suction arrangement uses an impeller trimmed to the required duty, with a maximum diameter of 11.5 inches. Final selection requires the pump curve, actual flow, head, NPSH, pressure, temperature, motor details, and foundation requirements for the planned commercial HVAC installation.

Construction and Service Details

- The 20 HP motor establishes the listed power class for commercial HVAC electrical planning.
- Three-phase operation identifies the motor phase required for compatible starters and protection.
- The 4 x 3 x 11.5 size provides suction, discharge, and casing references for layout.
- A flexible spacer coupler requires alignment and guard-clearance planning during installation.
- Regreasable ball bearings create a documented lubrication requirement for maintenance planning.
- Ductile-iron and bronze-fitted construction provide the stated material configuration.
- The 11.5-inch maximum impeller diameter requires duty-specific trim verification.

Hydraulic Performance and Application

The Series 4030 is listed for district heating, district cooling, and large commercial HVAC service. The supplied record does not state exact flow, head, NPSH, pressure, temperature, pump curve, or efficiency values, so the 20 HP rating and maximum impeller diameter cannot establish a guaranteed operating point.

Installation Requirements

Confirm three-phase electrical requirements, 4 x 3 x 11.5 casing dimensions, foundation support, shaft alignment, spacer-coupler fitment, bearing lubrication access, mechanical-seal arrangement, rotation, and service clearance before commissioning. The selected impeller trim must match the approved duty point and system resistance.

Warranty and Maintenance

Armstrong provides a 12-Month Limited Warranty from installation, limited to 18 months from shipment, covering material and workmanship defects under normal use and service. Improper installation, maintenance, misuse, alteration, negligence, abnormal additives, and normal wear are excluded. Regreasable bearings require scheduled service. Mulmotor provides product-information support before purchase.
