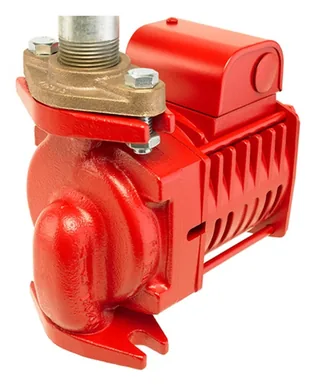

Armstrong 182212-663 E17.2 Cast Iron Circulation Pump

Medium-flow boiler loops use Armstrong 182212-663 E17.2 for commercial heating and hydronic circulation. Its 120 V single-phase dry-rot motor delivers up to 75 GPM against 22 feet of head, while the cast iron body, stainless steel shaft, silicon carbide seal, and maintenance-free ball bearings support boiler-loop service. Confirm the 2-bolt flange, system curve, and operating conditions before startup.

The Armstrong E17.2 uses dry-rot technology with a cast iron body and stainless steel shaft. Its silicon carbide mechanical seal supports fluid containment, while permanently lubricated ball bearings reduce routine maintenance. Verified data does not include amp draw, RPM, impeller material, operating temperature, dimensions, weight, thermal protection, or self-priming capability, so verify the complete pump selection before installation.

Key Features of Armstrong 182212-663 E17.2

- 75 GPM maximum flow supports medium-flow hydronic heating and commercial boiler loops.
- 22-foot maximum head suits compatible commercial heating distribution systems.
- 120 V single-phase operation fits compatible hydronic electrical circuits.
- Dry-rot technology separates motor components from circulating heating fluid.
- Cast iron body provides a rigid housing for commercial hydronic systems.
- Stainless steel shaft supports the rotating assembly during pump operation.
- Silicon carbide mechanical seal supports fluid containment under approved conditions.
- Maintenance-free ball bearings reduce routine lubrication and service requirements.
- Amperage, RPM, impeller, temperature, dimensions, weight, protection, and warranty require confirmation.

Why Choose Armstrong 182212-663 E17.2

This Armstrong hydronic circulator combines medium-flow capacity, dry-rot technology, and maintenance-free bearings for commercial boiler loops.

- Build: Cast iron, stainless steel, silicon carbide, and dry-rot construction support compatible commercial heating systems.
- Value: Maintenance-free ball bearings reduce lubrication work, while defined hydraulic limits improve system selection.
- Audience: Commercial HVAC contractors, boiler technicians, hydronic engineers, facility managers, and heating-system installers can specify this model.

Applications & Use Cases

Install the Armstrong 182212-663 E17.2 in commercial boiler loops, medium-flow hydronic heating, heating distribution, and compatible HVAC circulation. Physical dimensions, unit weight, and flange reach were not supplied, so verify pipe spacing, 2-bolt alignment, valve clearance, motor access, wiring position, and lifting room before installation.

Warranty & Support

- Warranty: Armstrong USA terms provide a 30-month circulator warranty from the date of manufacture, subject to stated conditions.
- Verify voltage, purge air, inspect the silicon carbide seal, confirm flange alignment, and check bearing operation during commissioning.

Clean system strainers, monitor the cast iron body for leakage, and inspect the shaft and seal during scheduled service. Purchase the Armstrong 182212-663 E17.2 commercial hydronic circulator from Mulmotor.com for authentic equipment, applicable factory warranty protection, and pump support.
