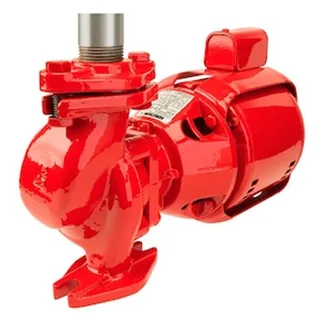

Armstrong 116479-136A H-64-3 Cast Iron Pump 3/4HP 3PH

Circulate closed-loop HVAC water with Armstrong 116479-136A H-64-3, a 3/4 HP three-phase Series 1060 pump for industrial hydronic systems. Its cast-iron body, 1725 RPM motor, and 2-inch flanged connection suit commercial heating and cooling loops where a horizontal in-line layout is available. The 225°F maximum temperature provides a clear operating limit. Confirm the system curve and electrical protection before startup.

The maintenance-free Sealed Bearing Assembly supports the rotating components within the horizontal in-line arrangement. The 208–230/460 V motor requires phase verification and correct rotation before commissioning. Flow, head, amp draw, dimensions, weight, seal material, and port-to-port reach were not supplied, so check the current submittal before installation.

Key Features & Benefits

- 3/4 HP Motor: Supports industrial HVAC and closed-loop hydronic circulation.
- Three-Phase Power: Accepts 208–230/460 V service for compatible commercial systems.
- 1725 RPM Speed: Provides a clear motor reference for replacement matching.
- 2-Inch Flanged Connection: Helps contractors verify piping compatibility before installation.
- Cast-Iron Body: Provides the specified casing material for fixed hydronic systems.
- Maintenance-Free SBA: Reduces routine bearing service during normal pump operation.
- 225°F Maximum Temperature: Establishes the listed limit for compatible heating applications.
- Horizontal In-Line Mounting: Fits compatible commercial pipe layouts with planned support.
- Series 1060 Design: Provides a defined pump family for industrial HVAC replacement work.

Why Choose Armstrong 116479-136A H-64-3

The H-64-3 gives commercial installers a three-phase Series 1060 circulator with a cast-iron body, maintenance-free SBA, and defined temperature rating.

- Build: Cast iron, sealed bearing assembly, horizontal in-line mounting, and 2-inch flange define the supplied pump.
- Value: Maintenance-free bearing construction can reduce routine service work during compatible HVAC operation.
- Audience: Suited to industrial HVAC contractors, boiler technicians, facility engineers, and commercial maintenance teams.

Applications & Use Cases

Use Armstrong 116479-136A H-64-3 for three-phase industrial HVAC, closed-loop hydronic systems, boiler branches, and compatible 2-inch flanged piping. The supplied data does not provide overall dimensions, unit weight, or port-to-port reach, so verify pipe centerlines, valve clearance, lifting access, motor space, and support requirements before installation.

Warranty & Support

- Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with Armstrong or the seller.
- Match SKU 116479-136A, model H-64-3, horsepower, phase, voltage, motor speed, flange size, and temperature rating before ordering.

Fill and purge the loop, verify phase rotation, inspect the flange and SBA areas, and confirm the 208–230/460 V supply before startup. Monitor vibration, temperature, sound, leakage, and operating conditions during commissioning. Purchase the Armstrong 116479-136A H-64-3 Series 1060 cast-iron HVAC pump through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
