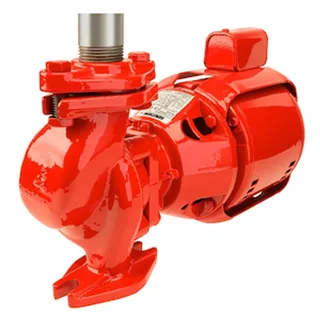

Armstrong 116439MF-132 H-53-1 Cast Iron Pump 1/2HP 1PH

Armstrong 116439MF-132 H-53-1 maintains commercial hydronic circulation with a 1/2 HP single-phase motor, cast-iron body, and three-piece in-line construction. The pump suits larger boiler-loop systems where the installer needs 115 or 230 V power and a defined 1-1/2-inch flanged connection. Its 1725 RPM motor and alloy-steel shaft with bronze sleeve provide useful replacement references. Confirm the system curve, flange spacing, and available service clearance before installation.

The mechanical carbon/ceramic seal contains fluid around the shaft while the three-piece design supports the internal pump arrangement. The supplied data does not state flow, head, pressure, amp draw, overall dimensions, or weight, so horsepower and connection size alone should not determine selection. Verify motor voltage, phase, shaft alignment, flange condition, and piping support before energizing the circulator.

Key Features & Benefits

- 1/2 HP Motor: Supports commercial hydronic heating and larger boiler-loop circulation.
- Single-Phase Operation: Accepts 115 or 230 V service for compatible US installations.
- 1725 RPM Speed: Provides a clear motor-speed reference for replacement matching.
- 1-1/2-Inch Flanged Connection: Helps contractors verify piping compatibility before installation.
- Cast-Iron Body: Provides the specified casing material for fixed commercial heating systems.
- Alloy-Steel Shaft: Uses a bronze sleeve for the specified rotating assembly arrangement.
- Carbon/Ceramic Mechanical Seal: Helps control shaft leakage during normal hydronic operation.
- Three-Piece In-Line Design: Fits serviceable commercial circulator layouts with defined piping alignment requirements.

Why Choose Armstrong 116439MF-132 H-53-1

The H-53-1 combines a 1/2 HP single-phase motor with a 1-1/2-inch flanged body and serviceable three-piece layout for larger commercial heating loops.

- Build: Cast iron, alloy steel, bronze sleeve, and carbon/ceramic sealing provide identified construction details.
- Value: The defined motor speed and connection size help contractors compare the unit with an existing circulator.
- Audience: Suited to boiler technicians, commercial HVAC contractors, facility engineers, and hydronic service teams.

Applications & Use Cases

Use Armstrong 116439MF-132 H-53-1 for commercial hydronic heating, larger boiler loops, heating branches, and compatible 1-1/2-inch flanged piping. The supplied data does not include overall dimensions, unit weight, or port-to-port reach, so verify flange centerlines, valve clearance, motor access, pipe support, and service space before installation.

Warranty & Support

- Warranty Terms Require Confirmation: Verify duration, coverage, registration, exclusions, and authorized service requirements with Armstrong or the seller.
- Match SKU 116439MF-132, H-53-1 model, motor voltage, phase, and connection size against the existing nameplate.

Fill and purge the loop, inspect the mechanical seal and flange gaskets, verify the selected voltage, and check shaft alignment before startup. Monitor vibration, noise, temperature, and leakage during commissioning. Purchase the Armstrong 116439MF-132 H-53-1 cast-iron hydronic circulating pump through Mulmotor.com for authentic equipment, applicable warranty support, and pump assistance.
