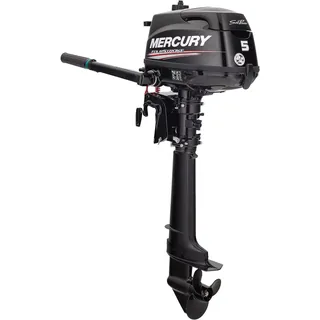

2027 Mercury 5HP Sail Power Tiller Outboard Motor

The 2027 Mercury 5HP Sail Power Tiller Outboard Motor is designed specifically for sailboats and auxiliary propulsion. It delivers reliable low-speed thrust, smooth 4-stroke performance, fuel-efficient operation, and easy tiller control for dependable maneuvering in marine environments.

Specifications:

- Engine Type: 1 Cylinder, 4-Stroke
- Displacement: 123 cc (7.5 cu. in.)
- Bore & Stroke: 59 x 45 mm (2.32" x 1.77")
- Full Throttle RPM Range: 4500 - 5500 RPM
- Alternator Output: 12V, 50W, 4A
- Dry Weight Range: 59 lbs
- Rated Power: 5 HP
- Fuel Delivery: Carbureted
- Steering Type: Tiller
- Shaft Length: 20"
- Starting System: Manual
- Cooling System: Water-cooled with thermostat
- Ignition System: CDI with electronic spark advance
- Exhaust: Through prop
- Lubrication System: Wet sump
- Oil Capacity: 0.45 L (0.12 gal)
- Trim Range: 6-position manual
- Tilt Range: 70 deg.
- Gear Ratio: 2.15:1
- Gear Shift: F-N-R
- Standard Propeller Type (Diameter x Pitch): 8 3/8" x 6"
- Oil Pressure Alert: Standard
- Temperature Alert: Standard
- Rev Limiter: Standard
- Fuel Tank Capacity: 0.3 gal (1.1 L) internal, external capable (not included)
- Factory Warranty: 3 years. Warranty begins on date of purchase
