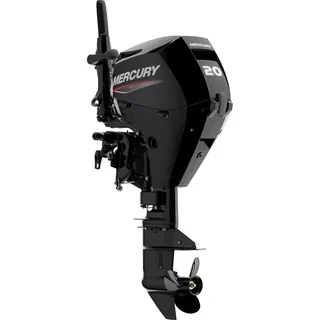

2027 Mercury 20HP Tiller Outboard Motor

The 2027 Mercury 20HP Tiller Outboard Motor is a lightweight and reliable 4-stroke marine engine designed for fishing, utility, and recreational boats. It delivers smooth acceleration, responsive tiller steering, excellent fuel efficiency, and dependable performance for everyday boating.

Specifications:

- Engine Type: Inline 2, SOHC, 4-Stroke
- Displacement: 333 cc (20.3 cu.in.)
- Bore & Stroke: 61 x 57 mm (2.40" x 2.24")
- Full Throttle RPM Range: 5700 - 6200 RPM
- Alternator Output: 12V, 145W, 12A
- Dry Weight Range: 103-127 lbs
- Rated Power: 20 HP
- Fuel Delivery: EFI
- Steering Type: Tiller
- Shaft Length: 15", 20"
- Starting System: Rope, Electric
- Cooling System: Water-cooled with thermostat
- Ignition System: CDI with electronic spark advance
- Exhaust: Through prop
- Lubrication System: Wet sump
- Oil Capacity: 1.0 L (0.26 gal)
- Trim Range: 6-position manual or power tilt
- Tilt Range: 73 deg. tiller lock for trailering
- Gear Ratio: 2.15:1
- Gear Shift: F-N-R
- Standard Propeller Type: 3-Blade Aluminum (9 1/4" x 10")
- Oil Pressure Alert: Standard
- Temperature Alert: Standard
- Rev Limiter: Standard
- Fuel Tank Capacity: 3.2 gal (12 L)
-

Factory Warranty: 3 years. Warranty begins on date of purchase
